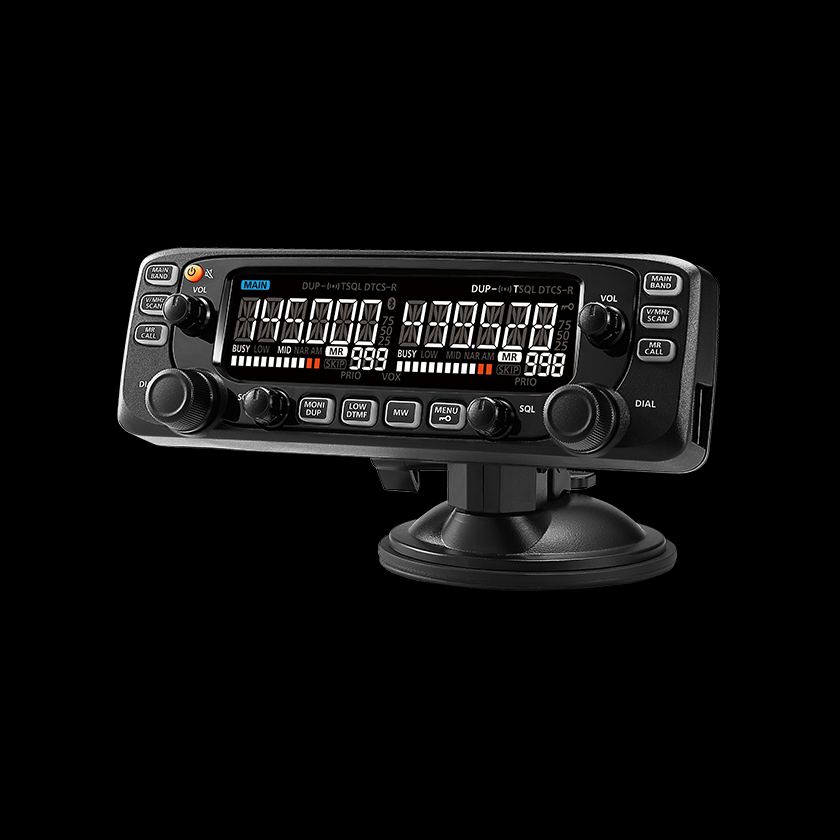

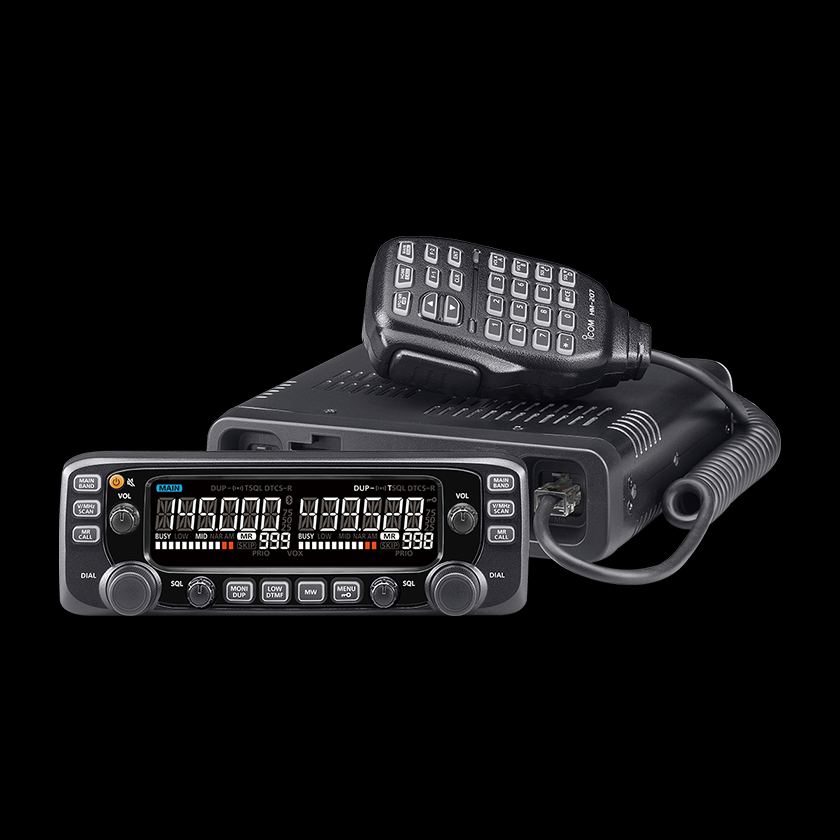

ICOM IC-2730B BLACK-EDITION

Description

Icom IC-2730B Type: Amateur VHF/UHF transceiver Frequency range: Europe · · TX: 144-146 / 430-440 MHz · · RX: 118-174 / 375-550 MHz Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz Mode: TX: FM / NFM · RX: AM / FM / NFM Weight: Body: 1.2 Kg (2.65 lb) · Controller: 140 g (4.94 oz) Other features: CTCSS/PL and DTCS. Tone scan. Twin RX (V+V, V+U, U+U). Receiver system: Double conversion superheterodyne · · 1st IF: 38.85 MHz (A band), 46.35 MHz (B band) · · 2nd IF: 450 KHz Sensitivity: AM (10 dB S/N) · · 118-137 MHz: 1 uV · · · FM/NFM (12 dB SINAD) · · 137-144 MHz: 0.32 uV · · 144-146 MHz: 0.18 uV · · 146-160 MHz: 0.32 uV · · 160-174 MHz: 0.56 uV · · 375-400 MHz: 0.56 uV · · 400-430 MHz: 0.32 uV · · 430-440 MHz: 0.18 uV · · 440-500 MHz: 0.32 uV · · 500-550 MHz: 0.56 uV Selectivity: FM: 60 dB · NFM: 55 dB Image rejection: A band: 60 dB (VHF), 55 dB (UHF) · B band: 60 dB (VHF), 60 dB (UHF) Manufactured: Japan, 2014-202x Related documents: User manual (5.3 MB) · · Exmenu and CI-V info (2.5 MB) Kilde: RigPix — https://www.rigpix.com/icom/ic2730e.htm
