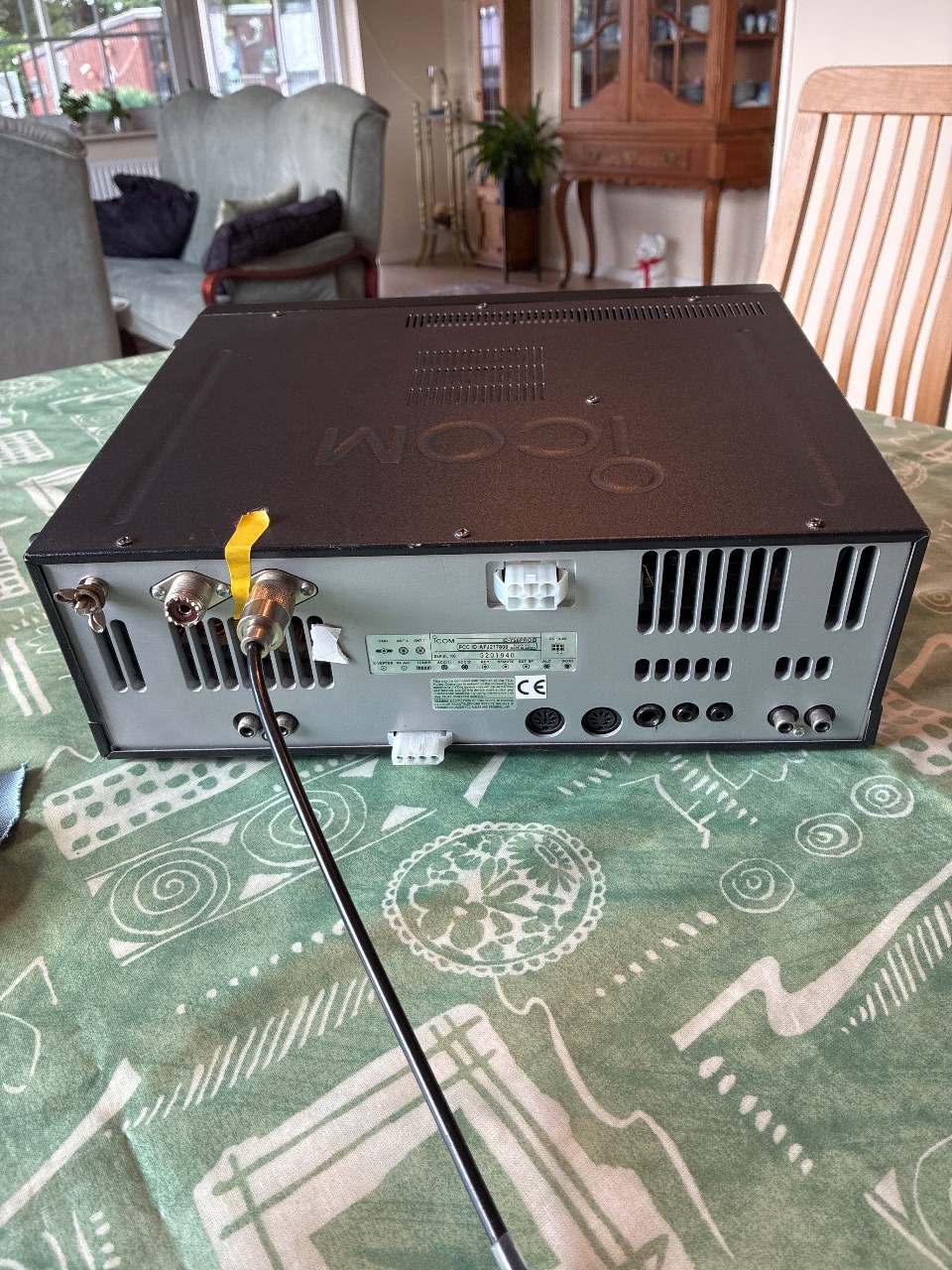

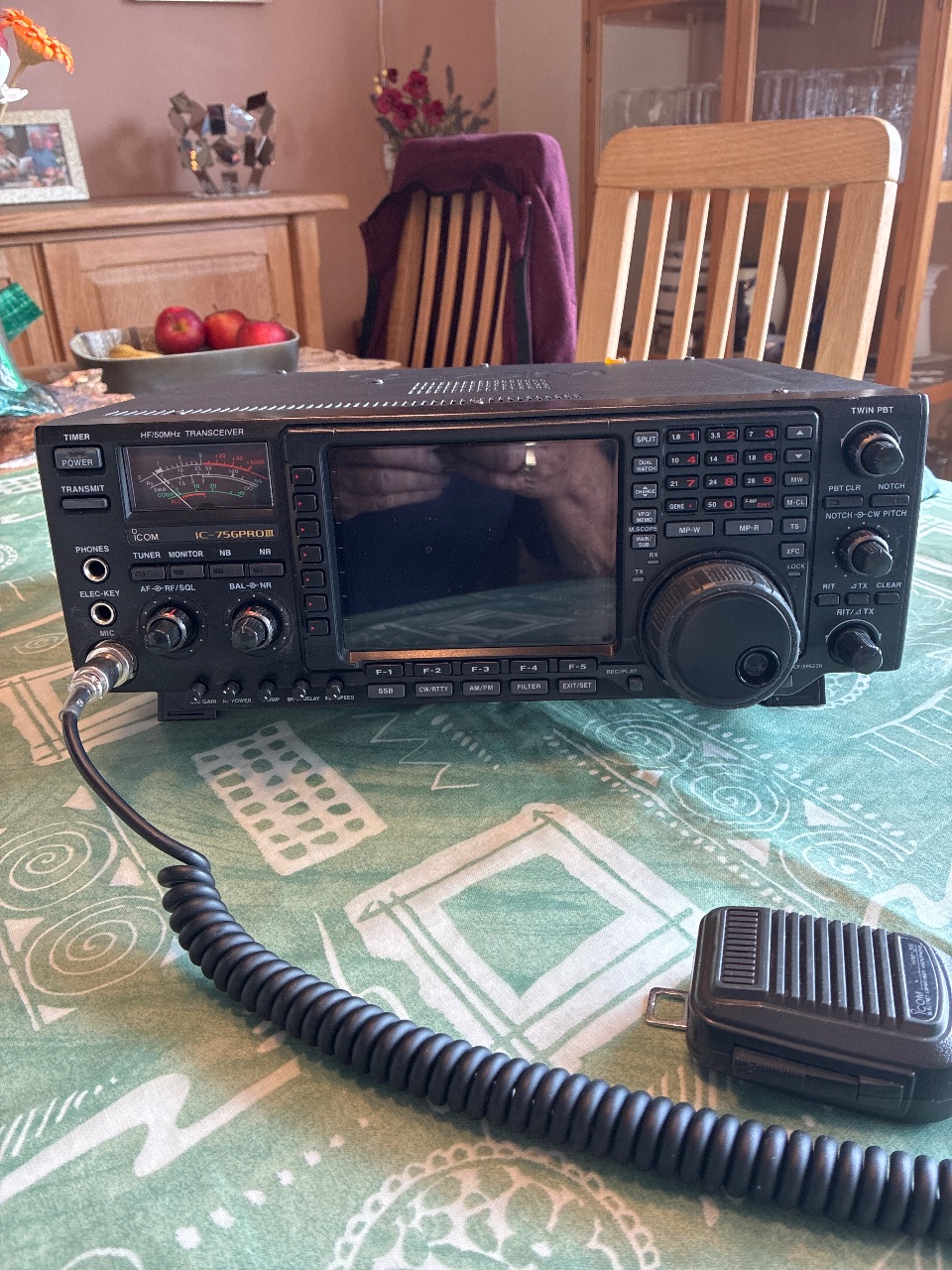

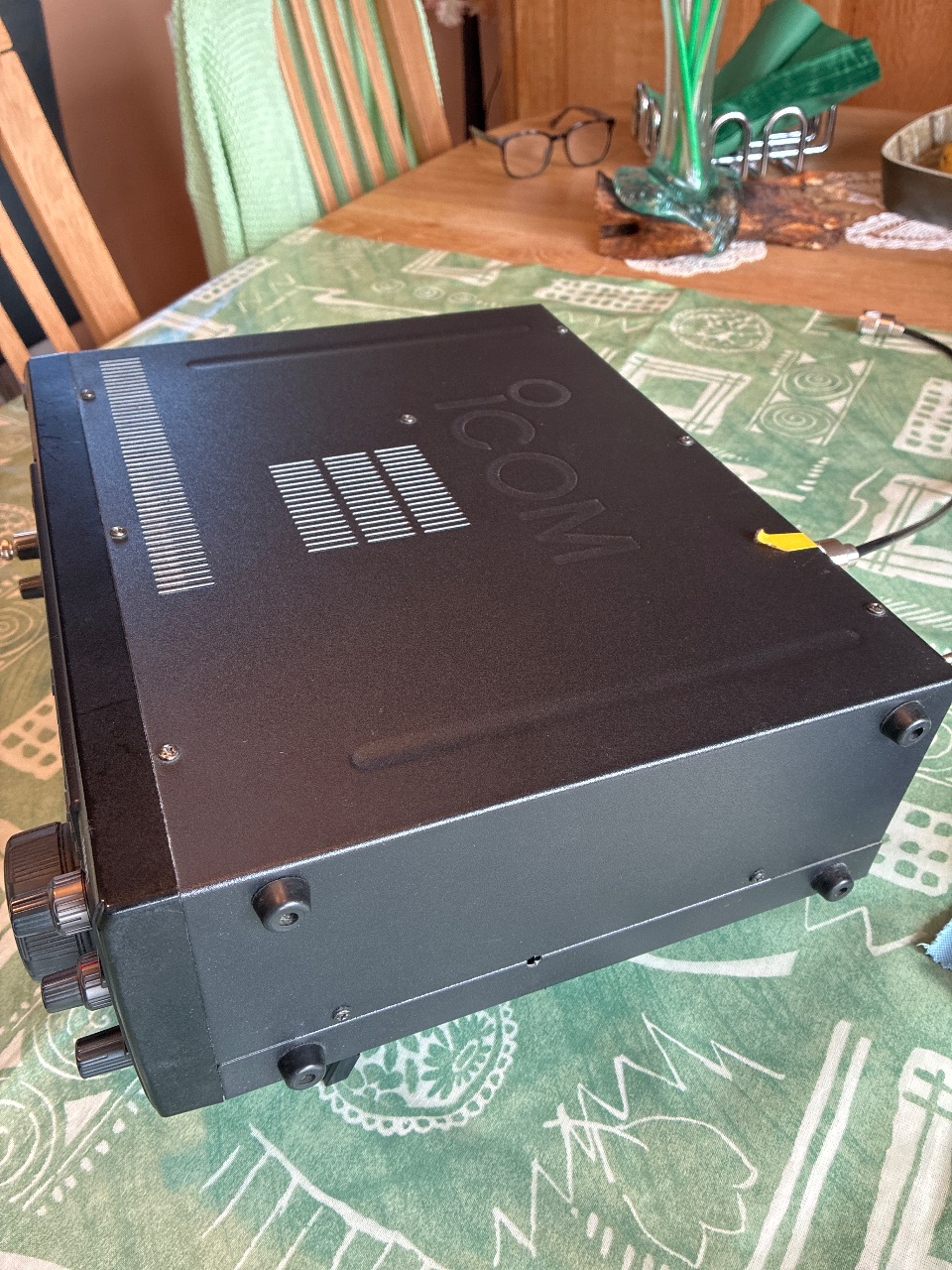

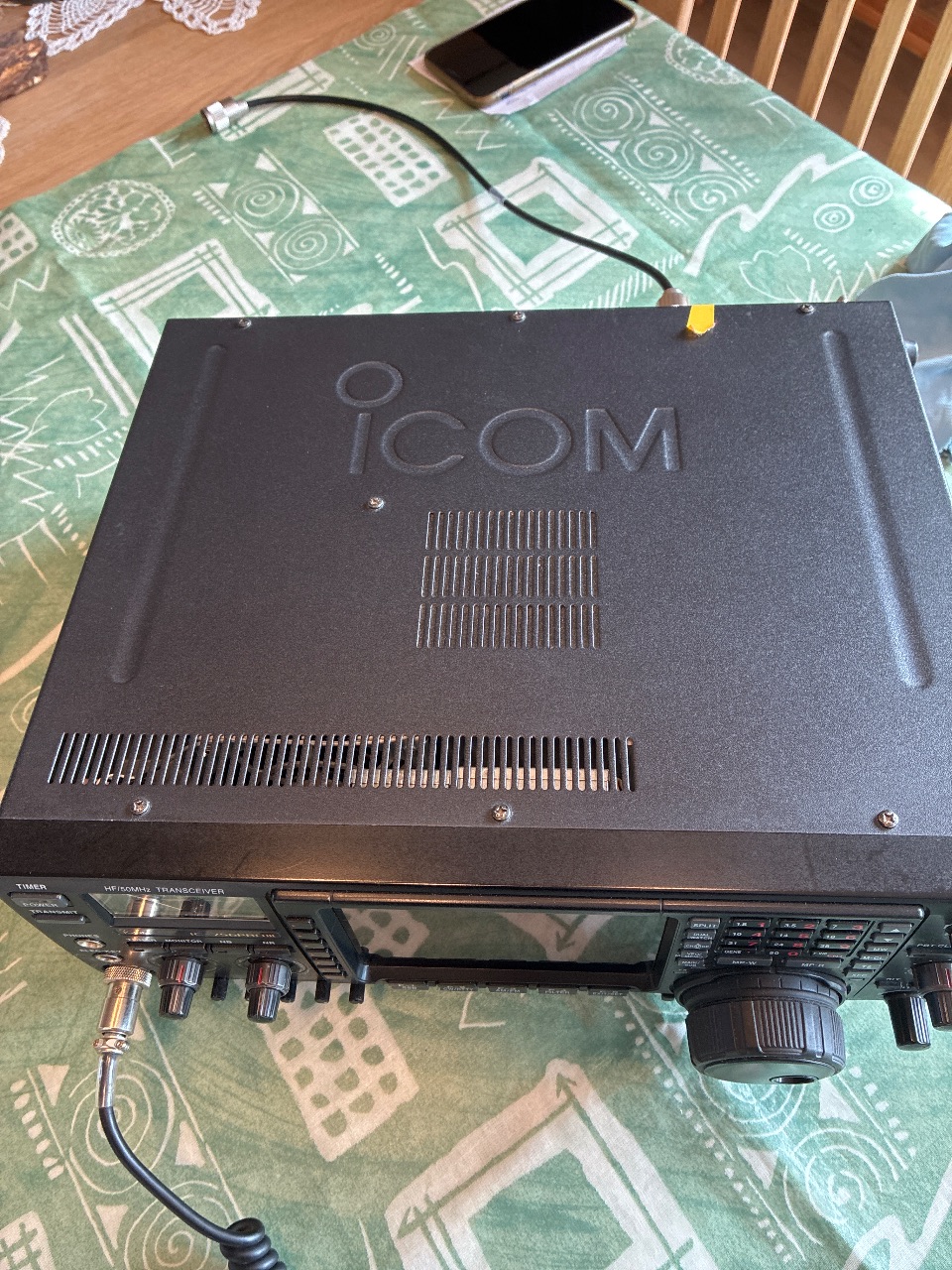

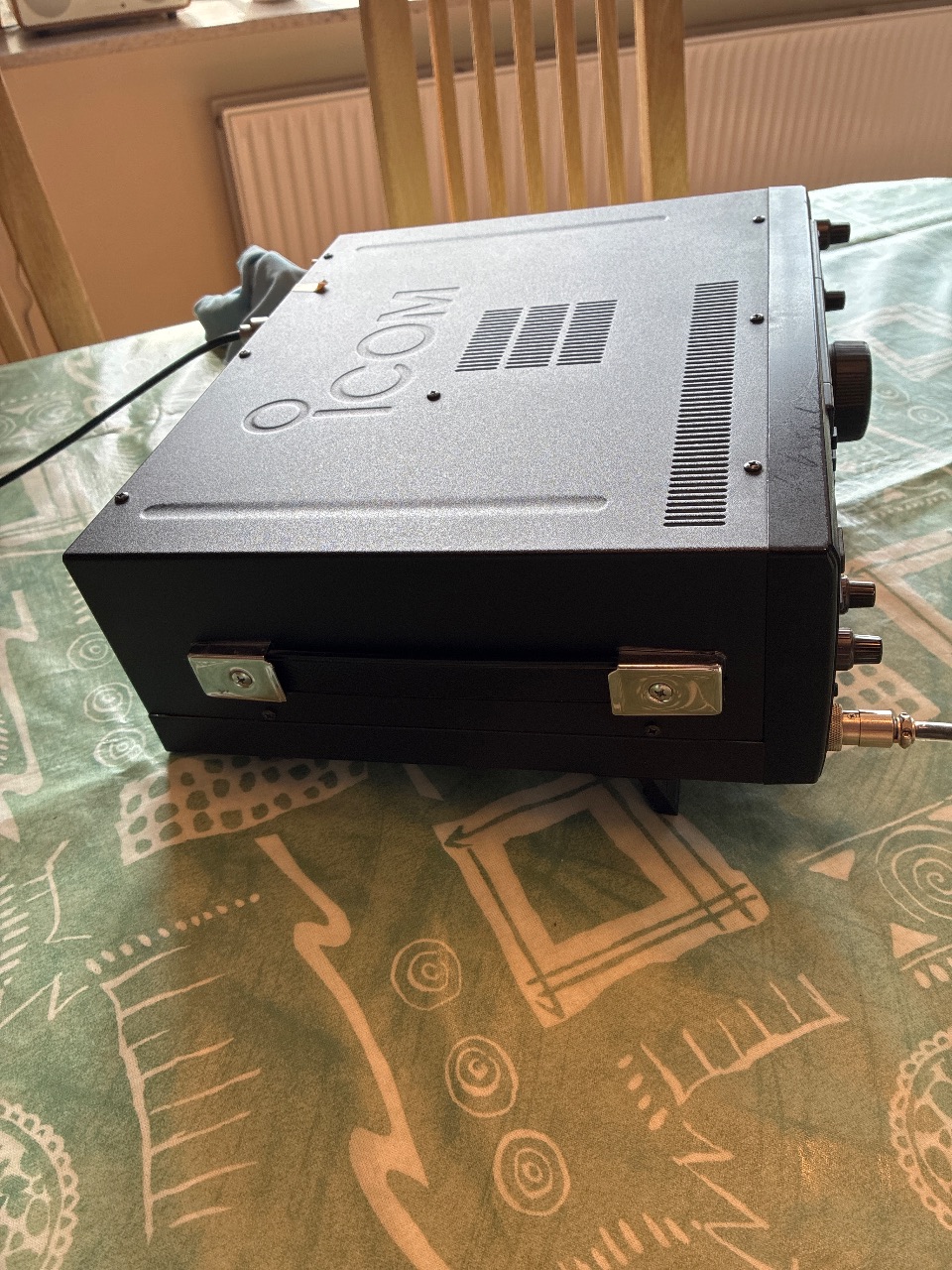

Icom IC-756 Pro III

Beskrivelse

Icom IC-756 Pro III Type: Amateur HF/VHF transceiver Frequency range: TX: 10-160 m + WARC / 50-54 MHz · · RX: 0.03-60 MHz Tuning steps: 1 Hz, 0.1 / 1 / 5 / 9 / 10 / 12.5 / 20 / 25 KHz Mode: AM / FM / SSB / CW / RTTY Weight: 9.6 Kg (21.16 lb) Other features: 32 bit IF-DSP. Built-in RTTY demodulator and auto-ATU. IP3 = +30 dBm. · · Built-in keyer. 5" color TFT. CI-V computer control. Receiver system: Triple-conversion superheterodyne · · 1st IF: 64.455 MHz · · 2nd IF: 455 KHz · · 3rd IF: 36 KHz Sensitivity: AM (10 dB S/N, 6 KHz BW) · · 0.5-1.8 MHz: 13 uV · · 1.8-30 MHz: 2 uV (Pre-amp 1 on) · · 50-54 MHz: 1 uV · · · FM (12 dB SINAD, 15 KHz BW) · · 28-30 MHz: 0.5 uV (Pre-amp 1 on) · · 50-54 MHz: 0.32 uV (Pre-amp 2 on) · · · SSB/CW/RTTY (10 dB S/N, 2.4 KHz BW) · · 1.8-30 MHz: 0.16 uV (Pre-amp 1 on) · · 50-54 MHz: 0.13 uV (Pre-amp 2 on) Selectivity: AM (BW=6 KHz) · · >6 KHz (-6 dB), FM (BW=15 KHz) · · >12 KHz (-6 dB) · SSB/RTTY (BW=2.4 KHz) · · >2.4 KHz (-6 dB) · CW (BW=500 Hz) · · >500 Hz (-6 dB) · <700 Hz (-60 dB) Image rejection: >70 dB Manufactured: Japan, 2003-2009 (Discontinued) Related documents: User manual (3.5 MB) · · Service manual (20 MB) Kilde: RigPix — https://www.rigpix.com/icom/ic756proiii.htm
