Doubander

Beskrivelse

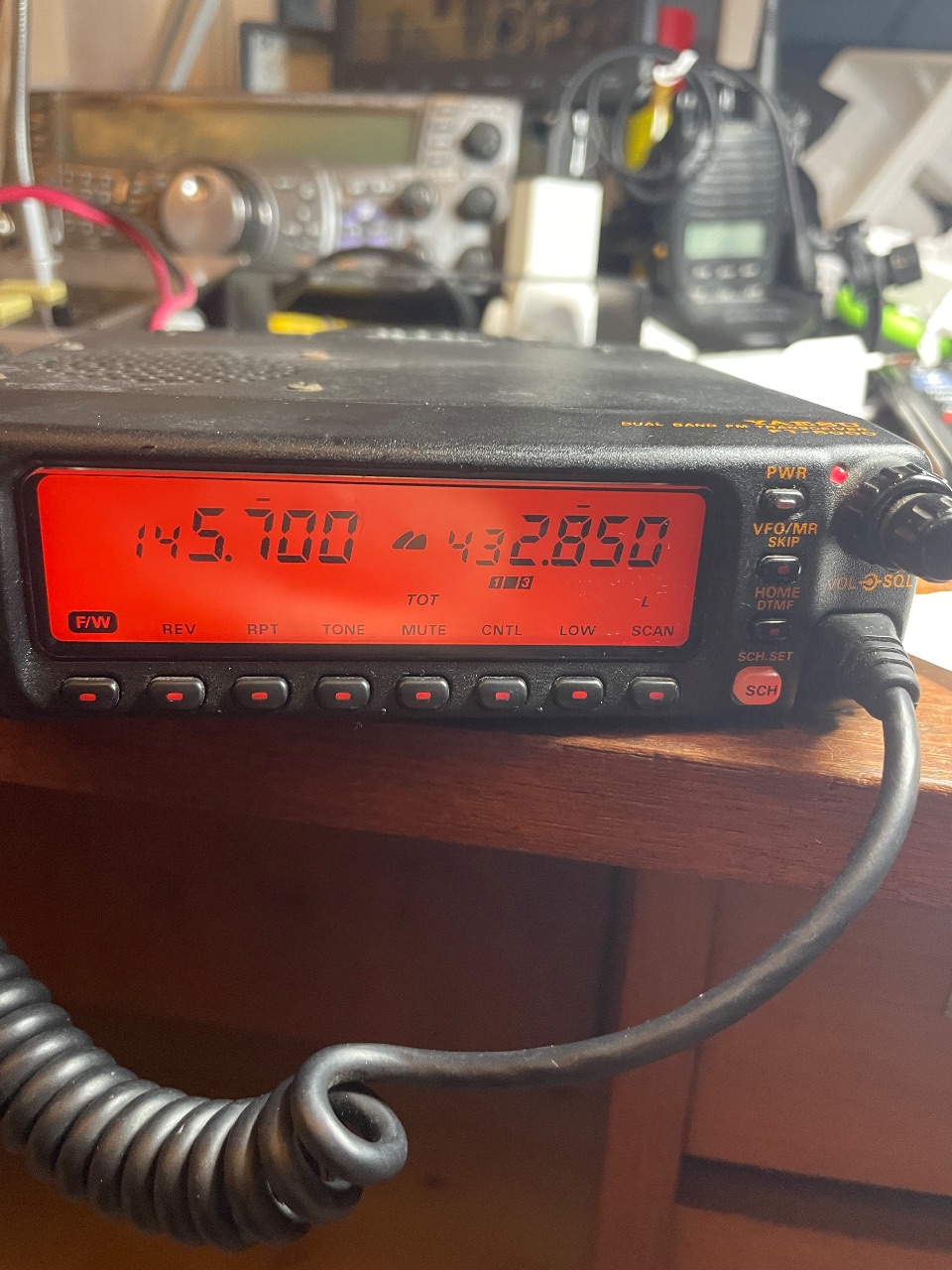

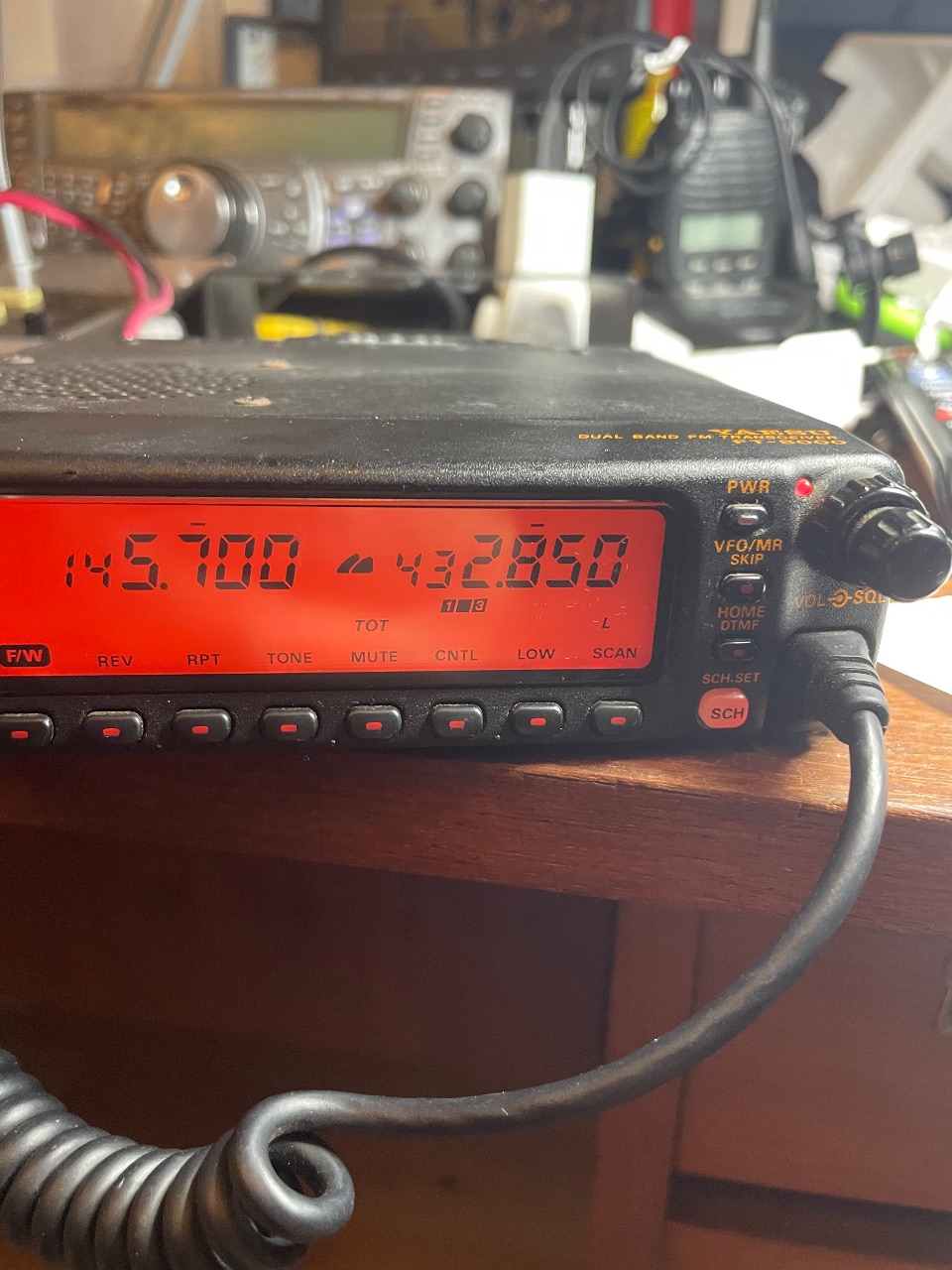

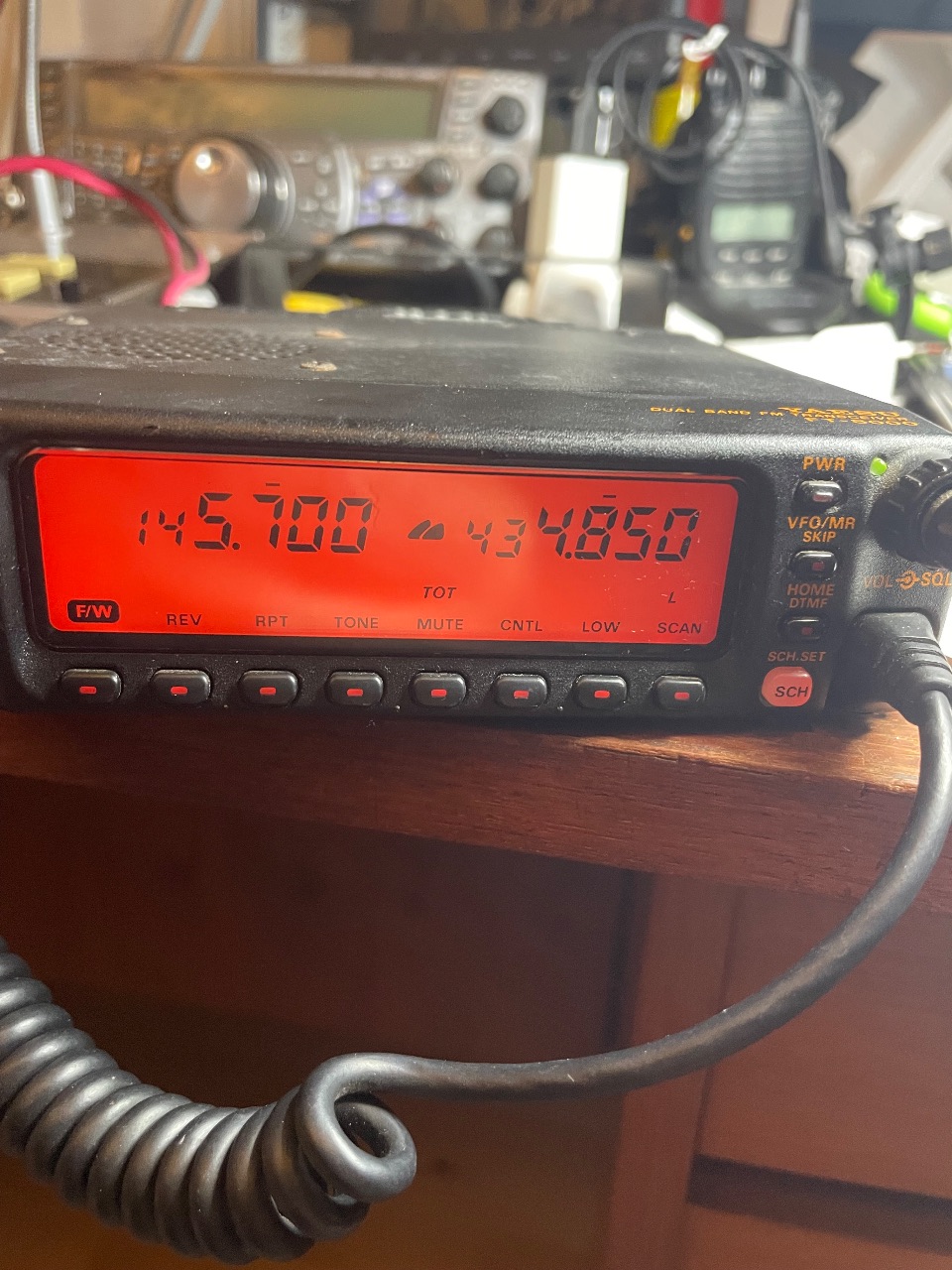

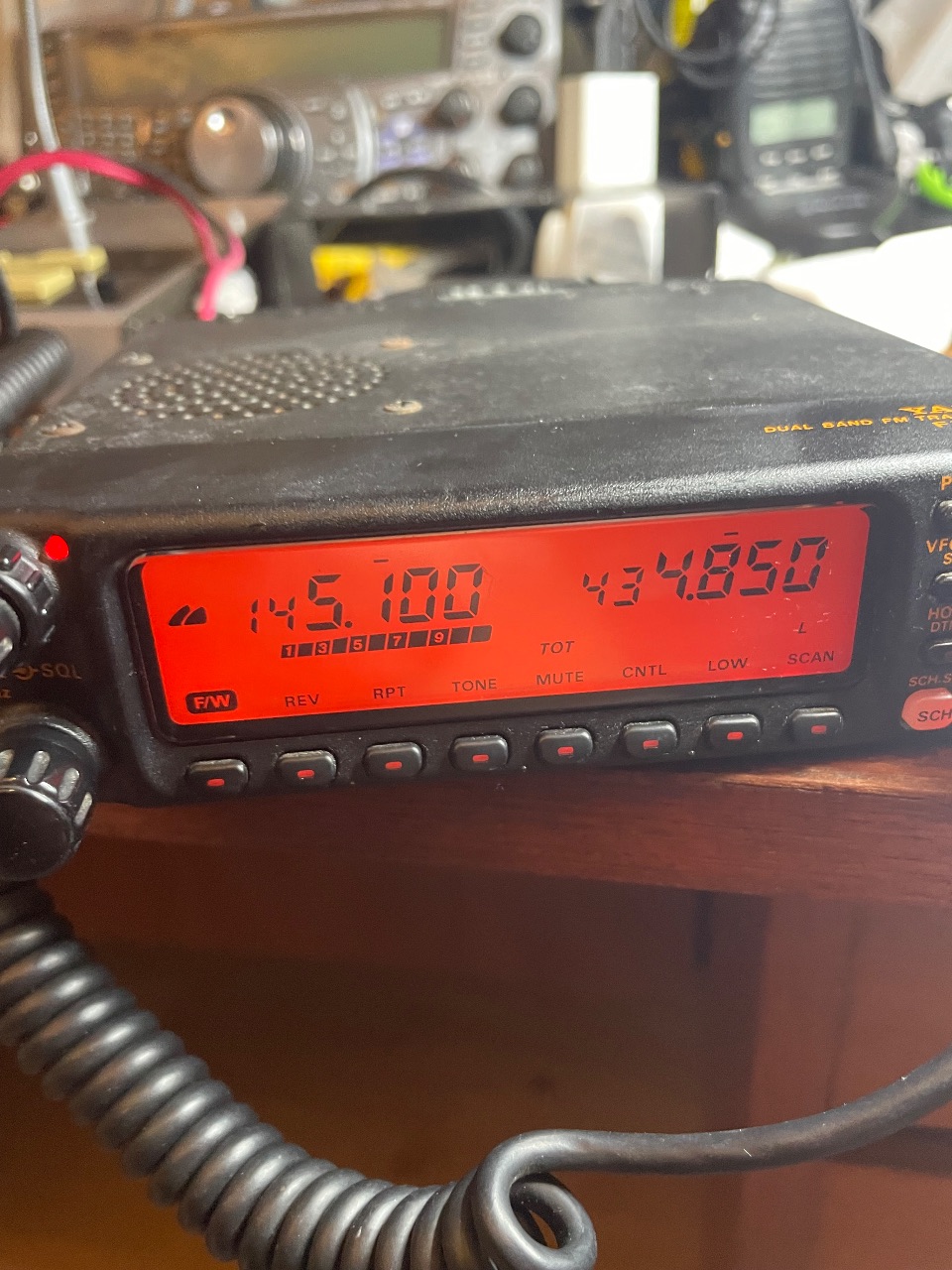

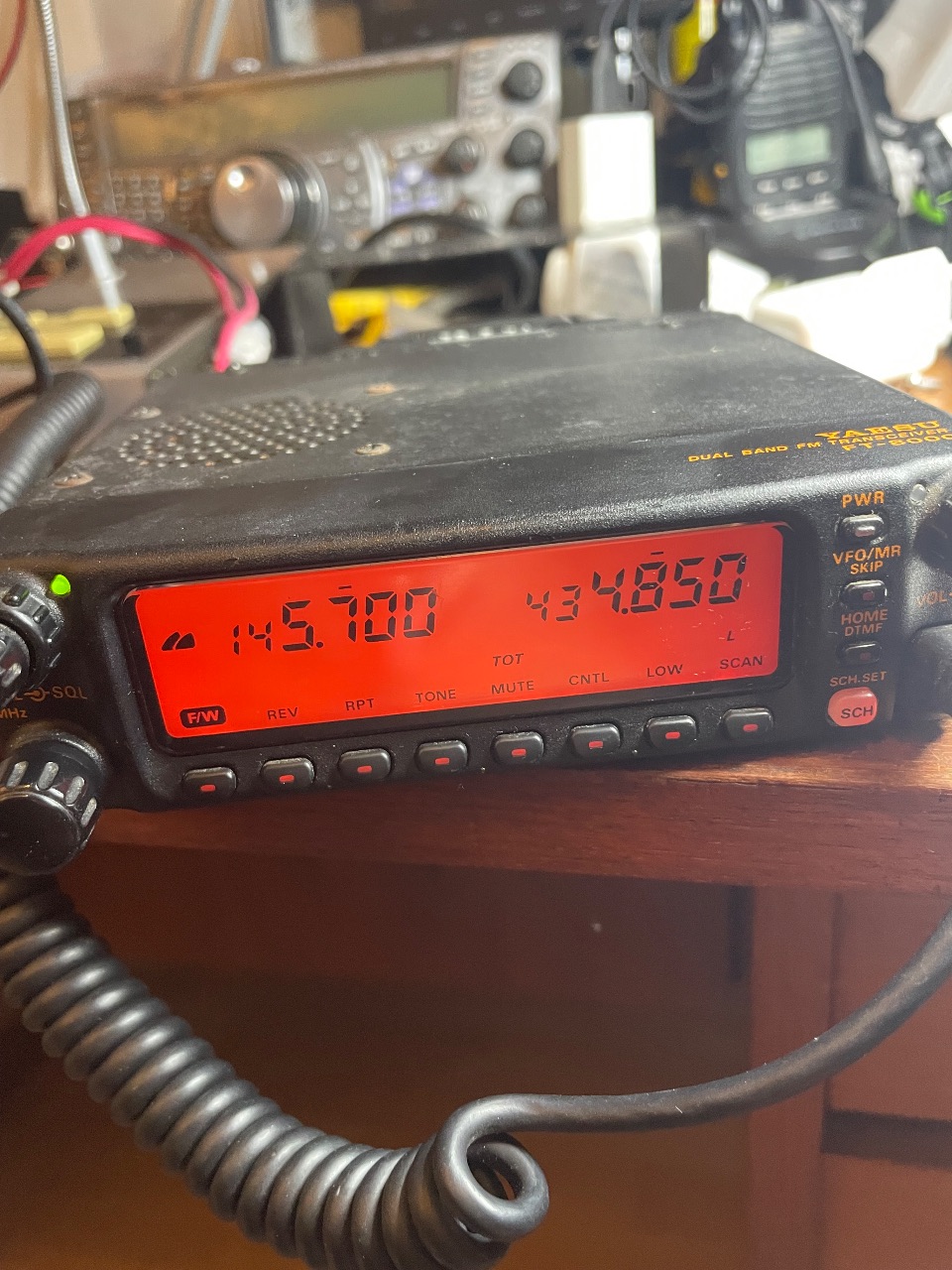

Yeasu FT 8000 duobander m. ny blæser monteret 04.09.26 samt SWR instrument (ikke pæn, men følger med gratis) Købt fra dødsbo, sælges u. garanti, kan afprøves på min QTH. + evt. porto Yaesu FT-8000R Type: Amateur VHF/UHF transceiver Frequency range: Europe · · TX: 144-146 / 430-440 MHz · · RX: 110-550 / 750-1300 MHz · · · USA · · TX: 144-148 / 430-450 MHz · · RX: 110-550 / 750-1300 MHz (Cellular blocked) Tuning steps: VHF: 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz · · UHF: 10 / 12.5 / 20 / 25 / 50 KHz Mode: TX: FM / NFM · RX: AM / FM / NFM Weight: 1.0 Kg (2.2 lb) Other features: CTCSS/PL encoder. DTMF. ARS. Dimmer. 1K2/9K6 packet jack. · · Twin RX (VV / VU / UU). Receiver system: Double conversion superheterodyne · · 1st IF: 45.05 MHz (VHF) - 58.525 MHz (UHF) · · 2nd IF: 455 KHz Sensitivity: Main RX: 0.18 uV (12 dB SINAD) · Sub RX: 0.25 uV (12 dB SINAD) Selectivity: 12 KHz (-6 dB) · 24 KHz (-60 dB) Image rejection: 70 dB Manufactured: Japan, 2003-200x (Discontinued) Related documents: User manual (10 MB) · · Service manual (46 MB) Kilde: RigPix — https://www.rigpix.com/yaesu/ft8000r.htm Yaesu FT-8000R Type: Amateur VHF/UHF transceiver Frequency range: Europe · · TX: 144-146 / 430-440 MHz · · RX: 110-550 / 750-1300 MHz · · · USA · · TX: 144-148 / 430-450 MHz · · RX: 110-550 / 750-1300 MHz (Cellular blocked) Tuning steps: VHF: 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz · · UHF: 10 / 12.5 / 20 / 25 / 50 KHz Mode: TX: FM / NFM · RX: AM / FM / NFM Weight: 1.0 Kg (2.2 lb) Other features: CTCSS/PL encoder. DTMF. ARS. Dimmer. 1K2/9K6 packet jack. · · Twin RX (VV / VU / UU). Receiver system: Double conversion superheterodyne · · 1st IF: 45.05 MHz (VHF) - 58.525 MHz (UHF) · · 2nd IF: 455 KHz Sensitivity: Main RX: 0.18 uV (12 dB SINAD) · Sub RX: 0.25 uV (12 dB SINAD) Selectivity: 12 KHz (-6 dB) · 24 KHz (-60 dB) Image rejection: 70 dB Manufactured: Japan, 2003-200x (Discontinued) Related documents: User manual (10 MB) · · Service manual (46 MB) Kilde: RigPix — https://www.rigpix.com/yaesu/ft8000r.htm
