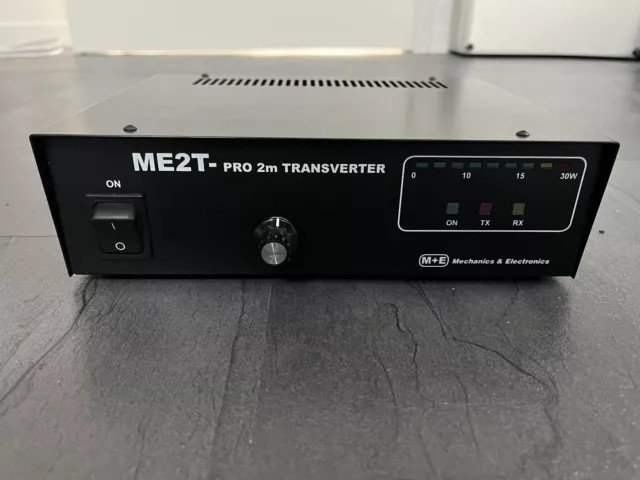

ME2T-PRO2 2m High performance transverter

Beskrivelse

ME2T-PRO2 2m High performance transverter Frequency Coverage: 144MHz band. ? IF in/out Frequency : 14MHz ? LO frq stability: Low phase noise TCXO, Better than +-1ppm 0-+60C,? I/O Impedance : 50 Ohm unbalanced ? coax jack UHF type. ? Input Voltage : 13.8VDC, +-10%, polarity mismatch, 10A -40dB EMI filter. ? Power Consumption : 0.36A RX, 5A TX @25W output, 10A @60W on ME2HT-PRO. ? Size & Weight : WxDxH: 240x210x70mm, 1.5kg. RECEIVING SECTION ? RX front-end : 30dBm OIP3, ASB ALN0140WT LNA ? RX RF mixer : MCL SRA-1H, +17dBm, VARI-L DBM-188 +30dBm for request ? RX overall gain : max. 22dB variable ? IF rejection : >85dB TRANSMITTING SECTION ? Power Output: 30W ( 60W on ME2HT-PRO version) continuous carrier. ? IF power input: -10 to +37dBm (switchable built in att.) Single or two IF cable operation. ? SWR input : 1:1.1 ? Emission modes : CW, SSB, FM, FSK. ? Harmonic Output Suppression: Better than 60 dB below rated output. FEATURES RA30H1317M Mitsubishi RF Power Module, RA60H1317M on ME2HT-PRO version Built in ext. fan speed controller circuit LED bargraph Power meter Output PWR poti on the front page (5-30W)( 5-60W on case ME2HT-PRO version) SND jack for ext PAs (GND out when TX, open collector +50V/0.5A max) ALC circuit Optional fan module (2pcs 50x50mm external fan ),standard on ME2HT-PRO Optional +30dBm RX mixer( VARI-L DBM-188) Built in heatsink temp. sensor IF input & output BNC connectors 20A type DC connectors Optional IF RX, TX and PTT cables DC output to ext. preamplifiers ? Operating environments: ? temperature range: 0?+50 degs.Celsius; ? humidity: up to 95% @ +35 degs.Celsius.
