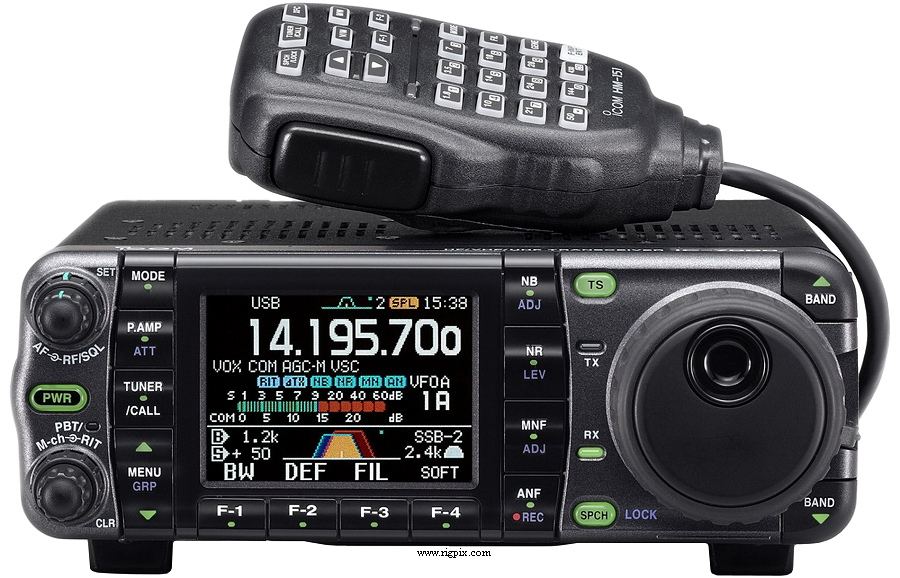

Icom IC-7000

Beskrivelse

Icom IC-7000 Type: Amateur HF/VHF/UHF transceiver Frequency range: TX: 10-160 m + WARC / 6 m / 2 m / 70 cm · · RX: 0.03-200 / 400-470 MHz Tuning steps: Down to 1 Hz Mode: TX: AM / FM / NFM / SSB / CW / RTTY · RX: AM / FM / NFM / WFM / SSB / CW / RTTY / TV Weight: 2.3 Kg (5.1 lb) Other features: CTCSS/PL & DTCS. 2" (5 cm) TFT display. IF-DSP. Voice recorder. Detachable control · · head. Audio equalizer. Voice synthesizer and keyer. CI-V. VHF channels NTSC-M and · · PAL-B TV receiver on some versions. Built-in RTTY decoder. Receiver system: Double conversion superheterodyne (WFM) · · 1st IF: 134.732 MHz · · 2nd IF: 10.7 MHz · · · Triple conversion superheterodyne (AM/FM/SSB/CW) · · 1st IF: 124.487 · · 2nd IF: 455 KHz · · 3rd IF: 16.15 KHz Sensitivity: AM (10 dB S/N) · · 0.5-1.8 MHz: 4 uV · · 1.8-29.9 MHz: 2 uV · · 50-54 MHz: 1 uV · · 144/440 MHz: 1 uV · · · FM (12 dB SINAD) · · 1.8-29.9 MHz: 0.5 uV · · 50-54 MHz: 0.25 uV · · 144/440 MHz: 0.18 uV · · · SSB/CW (10 dB S/N) · · 1.8-29.9 MHz: 0.15 uV · · 50-54 MHz: 0.12 uV · · 144/440 MHz: 0.11 uV Selectivity: AM (BW=6 KHz) · · >6 KHz (-6 dB) · FM (BW=15 KHz) · · >12 KHz (-6 dB) · SSB (BW=2.4 KHz) · · >2.4 KHz (-6 dB) · CW (BW=500 Hz) · · >500 Hz (-6 dB) · RTTY (BW=350 Hz) · · >360 Hz (-6 dB) · <650 Hz (-60 dB) Image rejection: HF: >70 dB · 50/144/440 MHz: >65 dB Manufactured: Japan, 2005-2014 (Discontinued) Related documents: User manual (4.9 MB) · · Service manual (11 MB) Kilde: RigPix — https://www.rigpix.com/icom/ic7000.htm
