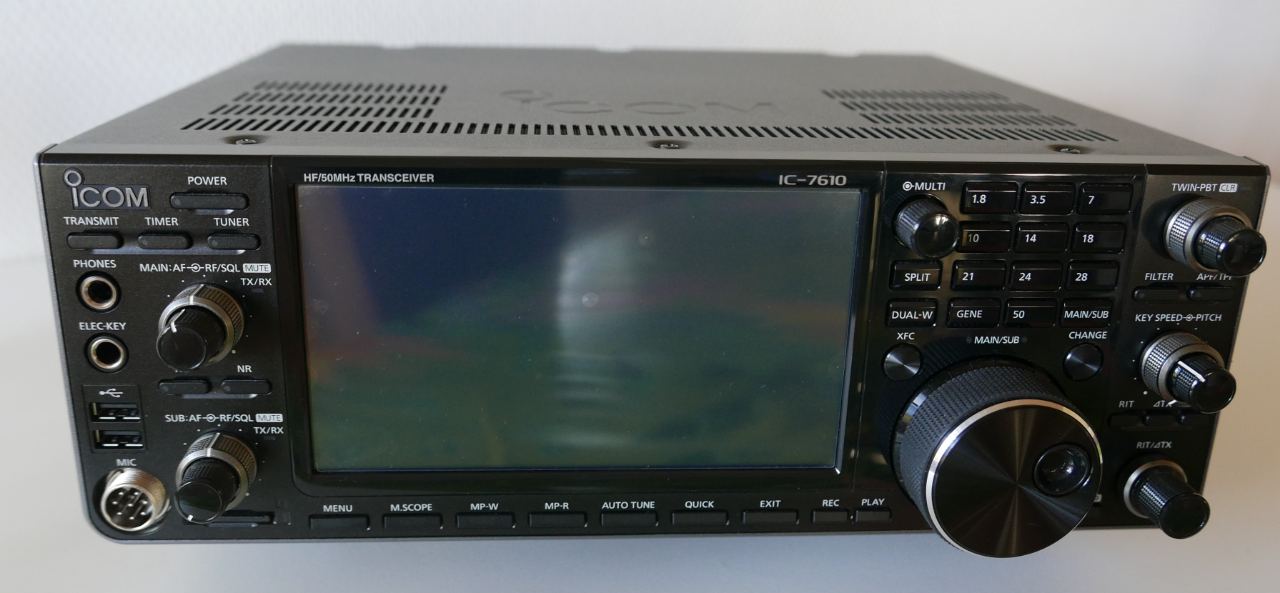

Icom IC-7610

Description

Tranceiveren er i meget fin stand kosmetisk og funktionelt 100% ( der er beskyttelse på display) Ligeledes fungerer alt som det skal tuner, rx, tx osv. Har kørt ca. 200 qso Alt tilbehør som fra ny medfølger Er købt fra ny sidst i 12 måned 2023 hos MWE Kan sendes med GLS i original dobbelt boks Handel v/ bankoverførsel Icom IC-7610 Type: Amateur HF/VHF transceiver Frequency range: TX: 10-160 m + WARC (also 137 KHz for EU version) / 6 m · · RX: 0.03-60 MHz Tuning steps: 1 / 100 Hz, 1 / 5 / 9 / 10 / 12.5 / 20 / 25 KHz Mode: AM / FM / SSB / CW / RTTY / PSK Weight: 8.5 Kg (18.7 lb) Other features: 7 inch touch screen display (800*400 pixels). True dual receivers. · · Diversity reception. Transverter port. LAN port. USB ports. · · Video monitor output. RTTY decoder. Electronic keyer. Auto ATU and more. Receiver system: Direct RF sampling superheterodyne · · IF: 12 KHz Sensitivity: General version · · AM (10 dB S/N. Soft filter) · · 0.1-1.8 MHz: 6.3 uV (Preamp 1 on) · · 1.8-30 MHz: 2 uV (Preamp 1 on) · · 6 m: 1 uV (Preamp 2 on) · · · FM (12 dB SINAD. Soft filter) · · 28-29.7 MHz: 0.5 uV (Preamp 1 on) · · 6 m: 0.32 uV (Preamp 2 on) · · · SSB/CW (10 dB S/N. Soft filter) · · 1.8-30 MHz: 0.16 uV (Preamp 1 on) · · 6 m: 0.13 uV (Preamp 2 on) · · · European version · · AM (12 dB SINAD. BW=4 KHz. 60% mo Selectivity: AM (Filter: Sharp, BW: 6 KHz) · · 6 KHz (-6 dB) · 15 KHz (-60 dB) · · · FM (Filter: Sharp, BW: 15 KHz) · · 12 KHz (-6 dB) · 20 KHz (-60 dB) · · · SSB (Filter: Sharp, BW: 2.4 KHz) · · 2.4 KHz (-6 dB) · 3.6 KHz (-60 dB) · · · CW (Filter: Sharp, BW: 500 Hz) · · 500 Hz (-6 dB) · 700 Hz (-60 dB) · · · RTTY (Filter: Sharp, BW: 500 Hz) · · 500 Hz (-6 dB) · 700 Hz (-60 dB) Image rejection: 70 dB (Except for ADC aliasing) Manufactured: Japan, 2017-20xx Related documents: User manual (16.5 MB) · · Advanced manual (14.5 MB) Kilde: RigPix — https://www.rigpix.com/icom/ic7610.htm
