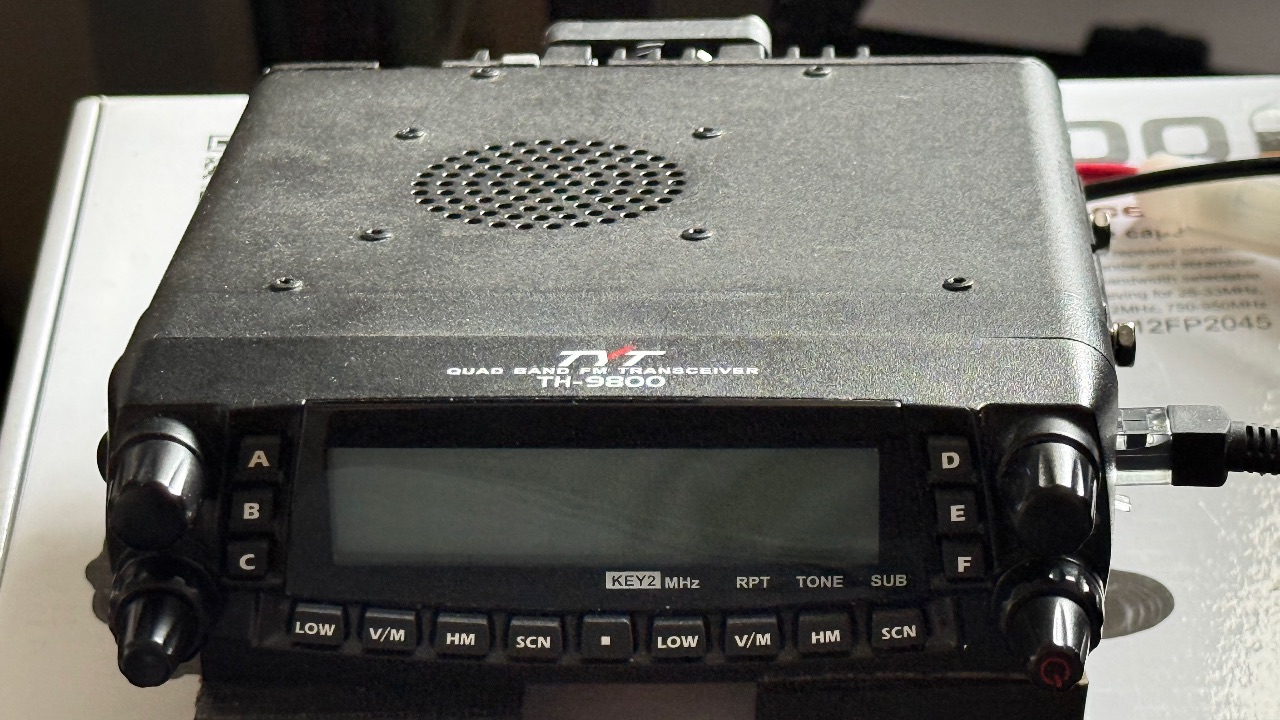

TYT TH-9800 4 bånd

Beskrivelse

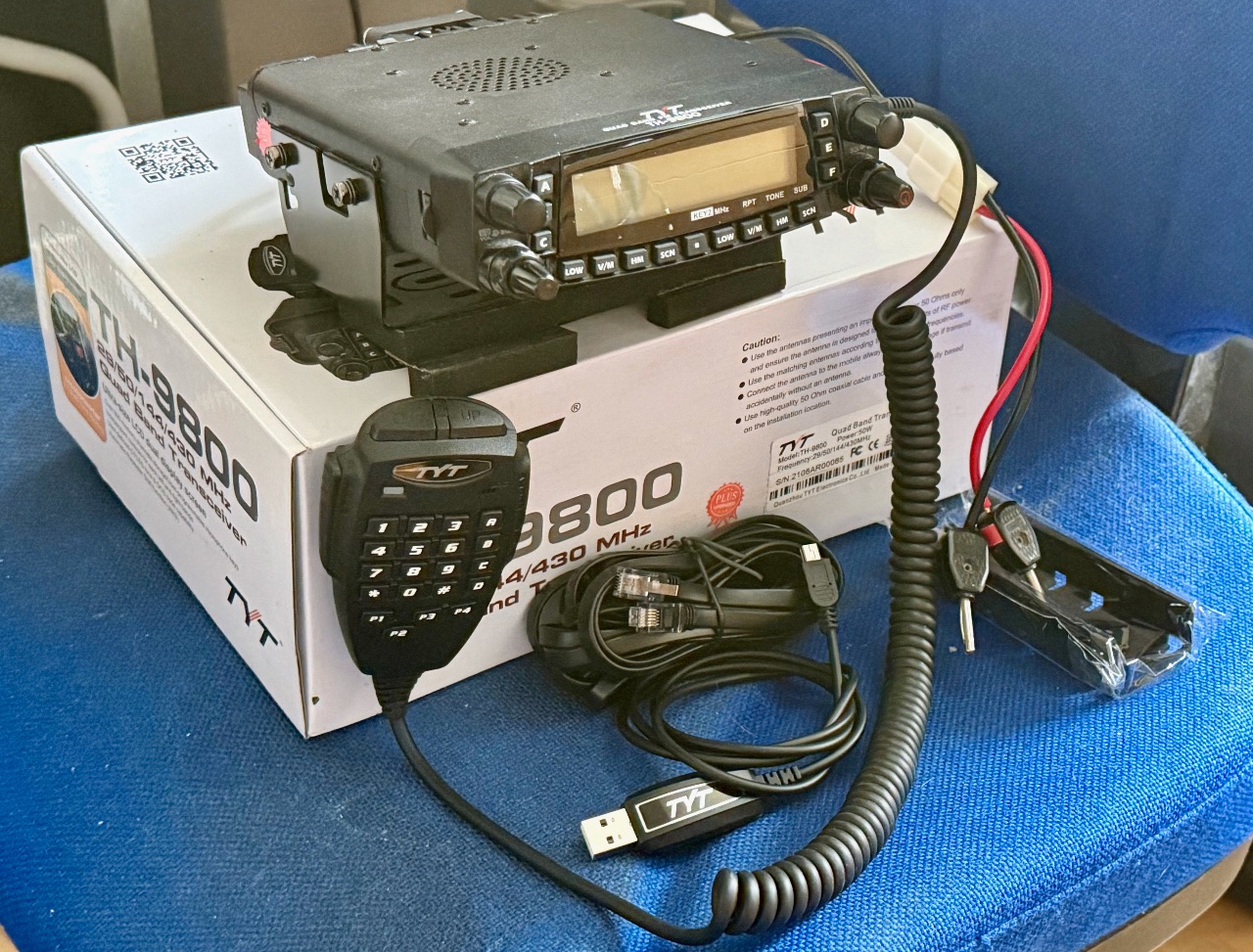

4 bånds mobilradio: 10 m, 6 m, 2 m og 70 cm 50 watt output. Der medfølger: Udvidelseskabel til den aftagelige front. Original kabel til programmering. Beslag til fronten alene, samt beslag til radioen. Mischam TH-9800 Type: Amateur HF transceiver Frequency range: Europe · · TX: 28.0-29.7 / 50-54 / 144-146 / 430-440 MHz · · RX: 28.0-29.7 / 50-54 / 108-180 / 320-480 MHz · · · USA · · TX: 28.0-29.7 / 50-54 / 144-148 / 430-450 MHz · · RX: 28.0-29.7 / 50-54 / 108-180 / 320-480 MHz Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz Mode: TX: FM / NFM · RX: AM / FM / NFM Weight: 1 Kg (2.2 lb) Other features: CTCSS/PL and DCS. DTMF-ANI. 5-tone/2-tone selcall. Scrambler. Twin RX Receiver system: Double conversion superheterodyne · · 1st IF: 46.05 MHz (Left band), 47.25 MHz (Right band) MHz · · 2nd IF: 450 KHz Sensitivity: <0.2 uV (12 dB SINAD) Selectivity: FM: · · 12 KHz (-6 dB) · 30 KHz (-60 dB) Manufactured: China, 2012-201x (Discontinued) Kilde: RigPix — https://www.rigpix.com/mischam/tyt_th9800.htm
