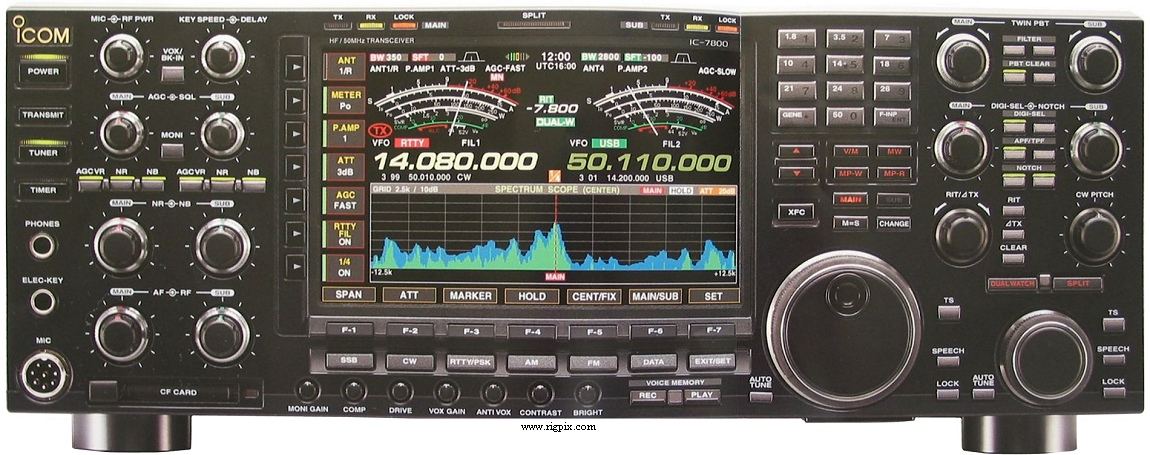

Icom IC-7800

Description

Icom IC-7800 pæn og velholdt Type: Amateur HF/VHF transceiver Frequency range: TX: 10-160 m + WARC / 6 m · · RX: 0.03-60 MHz Tuning steps: Down to 1 Hz Mode: AM / FM / SSB / CW / RTTY / PSK31 Weight: 25 Kg (55.12 lb) Other features: 7" color TFT with VGA output. Auto-ATU. RTTY/PSK31 decoder. DSP. Spectrum scope. · · DVR. Two USB connectors. +40 dBm ultra high intercept point. CI-V. Electronic keyer. · · Speech synthesizer. Compact Flash card storage. CTCSS/PL. Four 32 bit DSP's. RS-232C. Twin RX. Receiver system: Double conversion superheterodyne · · 1st IF: 64.455 MHz (Main and sub) · · 2nd IF: 36 KHz Sensitivity: AM (10 dB S/N) · · 0.1-1.8 MHz: 6.3 uV (Preamp 1 on) · · 1.8-30 MHz: 2 uV (Preamp 1 on) · · 50-54 MHz: 1 uV (Preamp 2 on) · · · FM (12 dB SINAD) · · 28-30 MHz: 0.5 uV (Preamp 1 on) · · 50-54 MHz: 0.32 uV (Preamp 2 on) · · · SSB/CW/RTTY (10 dB S/N) · · 0.1-1.8 MHz: 0.5 uV (Preamp 1 on) · · 1.8-30 MHz: 0.16 uV (Preamp 1 on) · · 50-54 MHz: 0.13 uV (Preamp 2 on) Selectivity: AM (BW: 6 KHz) · · 6 KHz (-3 dB) · 15 KHz (-60 dB) · · · FM (BW: 15 KHz) · · 12 KHz (-3 dB) · 20 KHz (-60 dB) · · · SSB/RTTY (BW: 2.4 KHz) · · 2.4 KHz (-3 dB) · 3.6 KHz (-60 dB) · · · CW (BW: 500 Hz) · · 500 Hz (-3 dB) · 700 Hz (-60 dB) Image rejection: 70 dB Manufactured: Japan, 2004-201x (Discontinued) Related documents: User manual (25.7 MB) Kilde: RigPix — https://www.rigpix.com/icom/ic7800.htm
