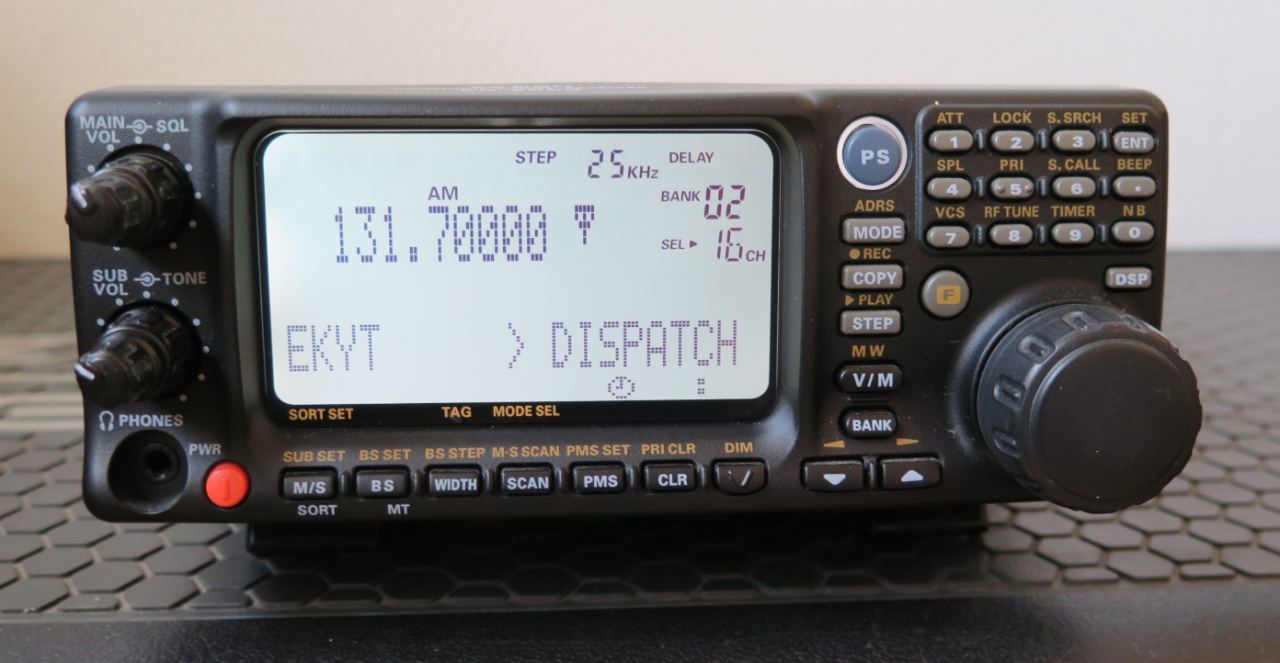

Yaesu VR-5000

Description

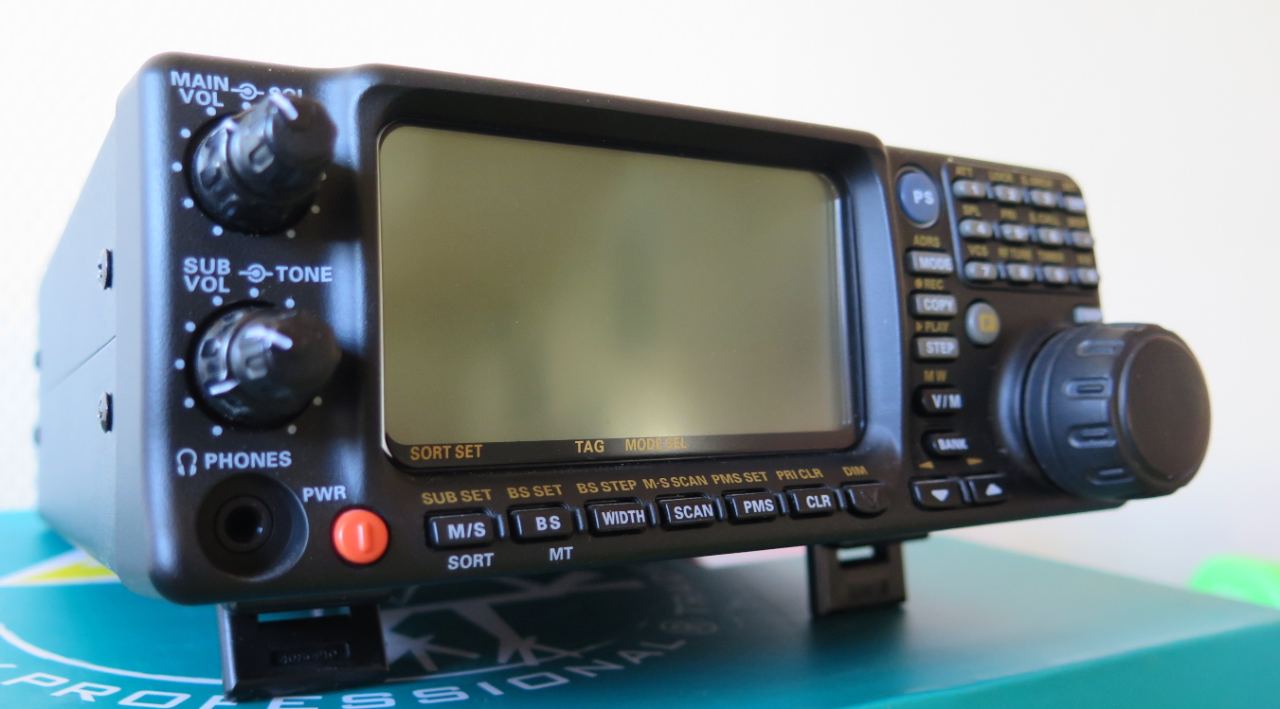

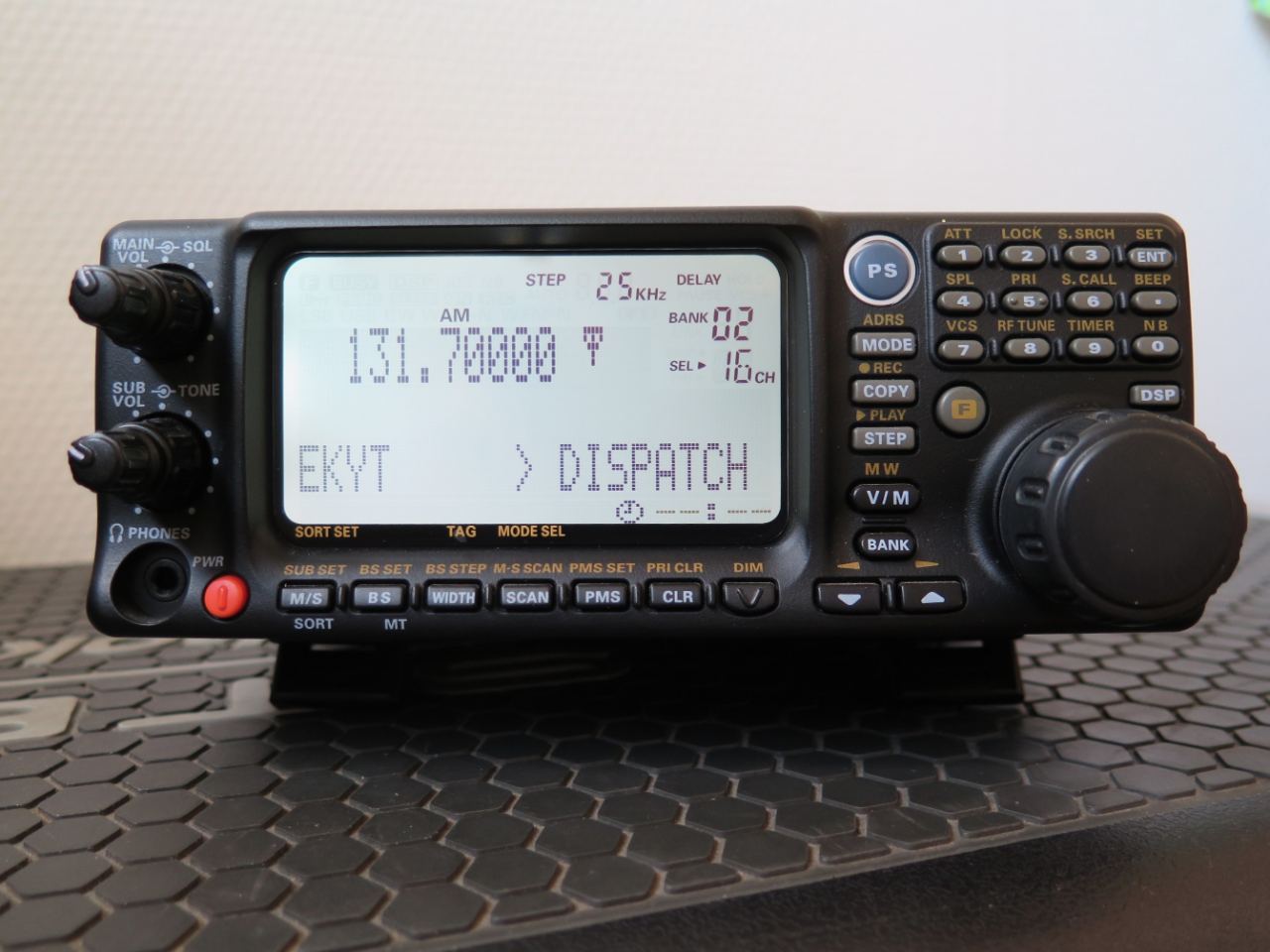

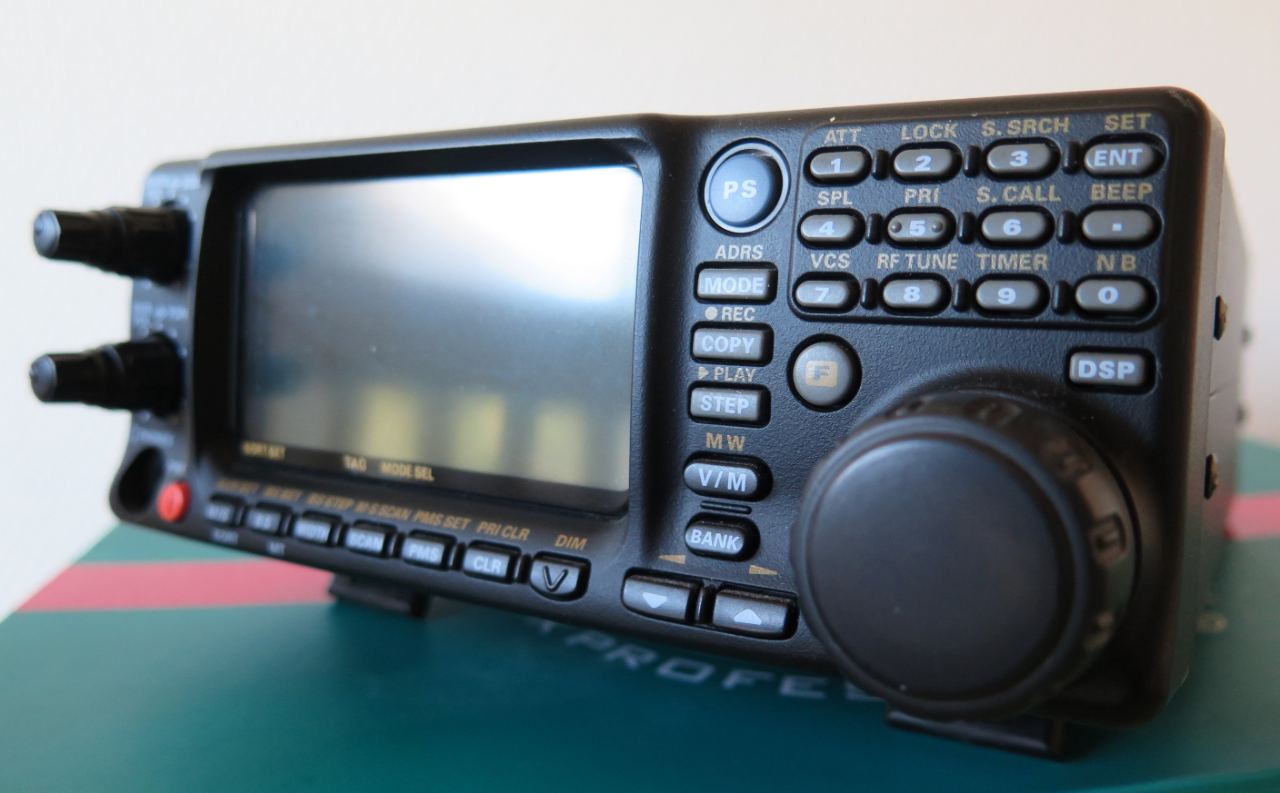

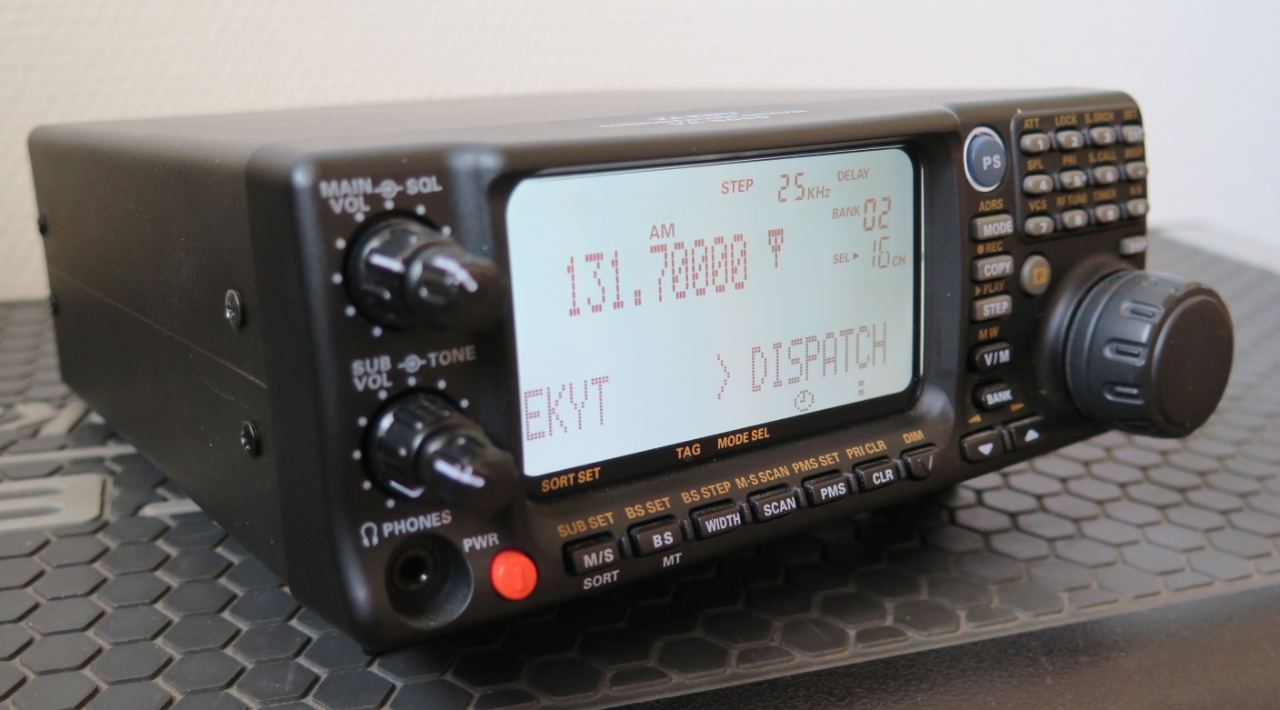

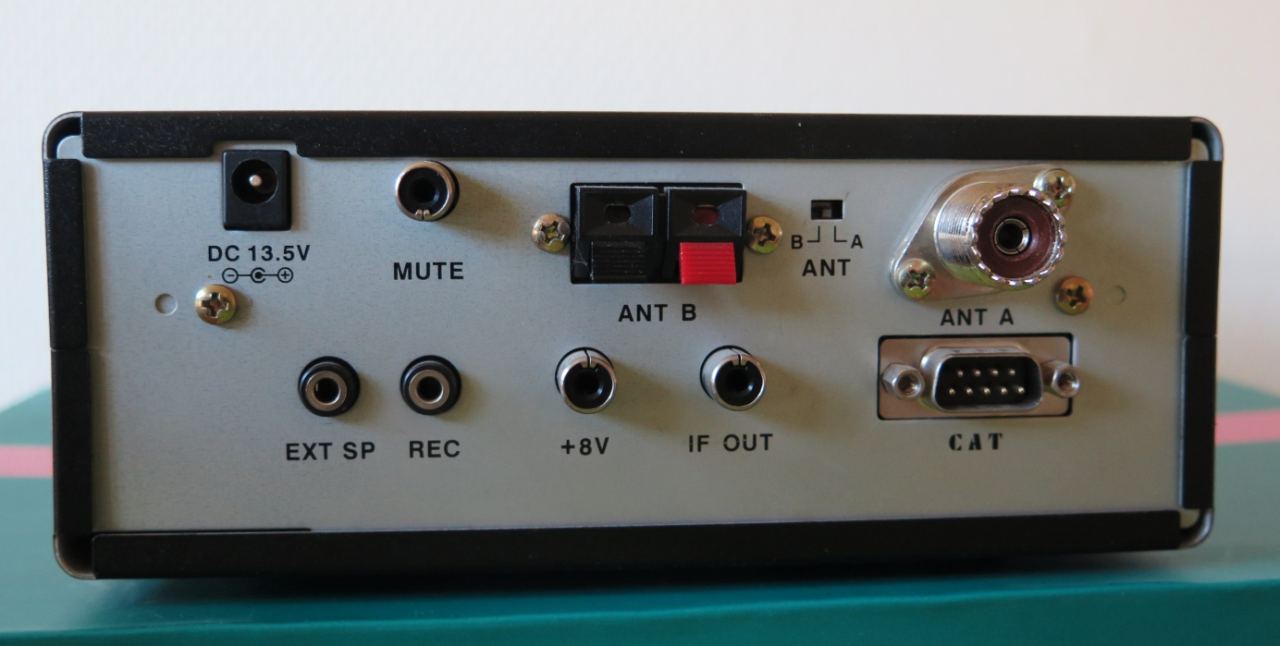

Yaesu VR-5000 Communications Receiver Fin og velfungerende. Der medfølger programmerings software på CD Type: HF/VHF/UHF receiver/scanner Frequency range: 0.1-2600 MHz (Cellular blocked in the US) Tuning steps: 20 / 100 / 500 Hz and 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 50 / 100 / 500 KHz Mode: AM / NAM / WAM / NFM / WFM / SSB / CW Weight: 1.9 Kg (4.2 lb) Other features: Real-time band-scope, world clock. NB. VCS. Alpha tags. CAT computer control. · · 10.7 MHz IF output. Dual RX with sub VFO within ±20 MHz of main VFO. Receiver system: Triple conversion superheterodyne (WFM) · · 1st IF: 610-615 MHz · · 2nd IF: 45.75 MHz · · 3rd IF: 10.7 MHz · · · Quadruple conversion superheterodyne (AM/NAM/WAM/NFM/SSB/CW) · · 1st IF: 610-615 MHz · · 2nd IF: 45.75 MHz · · 3rd IF: 10.7 MHz · · 4th IF: 455 KHz Sensitivity: AM (10 dB S/N) · · 0.2-0.5 MHz: 10.8 uV · · 0.5-1.8 MHz: 4 uV · · 1.8-4 MHz: 2.5 uV · · 4-30 MHz: 1.1 uV · · · NFM (12 dB SINAD) · · 28-30 MHz: 0.35 uV · · 30-2000 MHz: 0.45 uV · · 2000-2600 MHz: 0.8 uV · · · WFM (12 dB SINAD) · · 30-2000 MHz: 1.5 uV · · · SSB/CW (10 dB S/N) · · 0.2-0.5 MHz: 4.8 uV · · 0.5-1.8 MHz: 1 uV · · 1.8-4 MHz: 0.6 uV · · 4-30 MHz: 0.3 uV · · 30-2000 MHz: 0.3 uV · · 2000-2600 MHz: 0.5 uV Manufactured: Japan, 2000-2010 (Discontinued) Related documents: User manual (2.2 MB) · · Schematic diagram (16.3 MB) Kilde: RigPix — https://www.rigpix.com/yaesu/vr5000.htm
