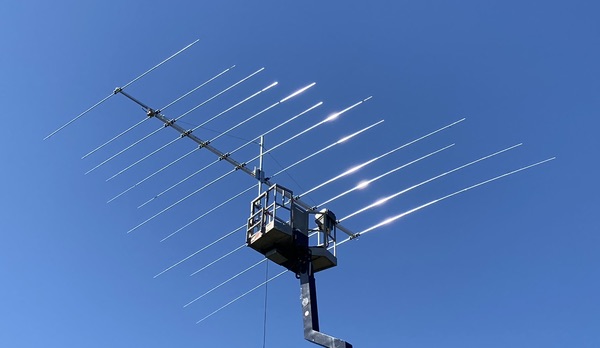

Helt ny Optibeam OBDYA12-5 12 Element Driven Yagi Array 20-17-15-12-10m

Description

Optibeam OBDYA12-5 12 Element Driven Yagi Array 20-17-15-12-10m Bands 20 / 17 / 15 / 12 / 10 Gain (dBd) * 5,08 / 5,05 / 5,25 / 5,25 / 5,41 Gain (dBi) ** 12,1 / 12,5 / 12,6 / 12,7 / 12,9 Practical performance (due to active radiation area) better than 3el monoband Yagi on all bands F/B (dB) 26 / 27 / 35 / 27 / 29 SWR All band ranges < 1.3 Elements (number) 12 Active elements between 70 and 100% of the entire antenna area operative Max. elementlength (m) 11,22 Boomlength (m) 7,50 Turning radius (m) 6,56 Feed lines (number) 1 Koax 50 Ohm Weight (kg) 55 Windload at 130 km/h 1.200 N / 1,50 m2 / 16,13 feet2
