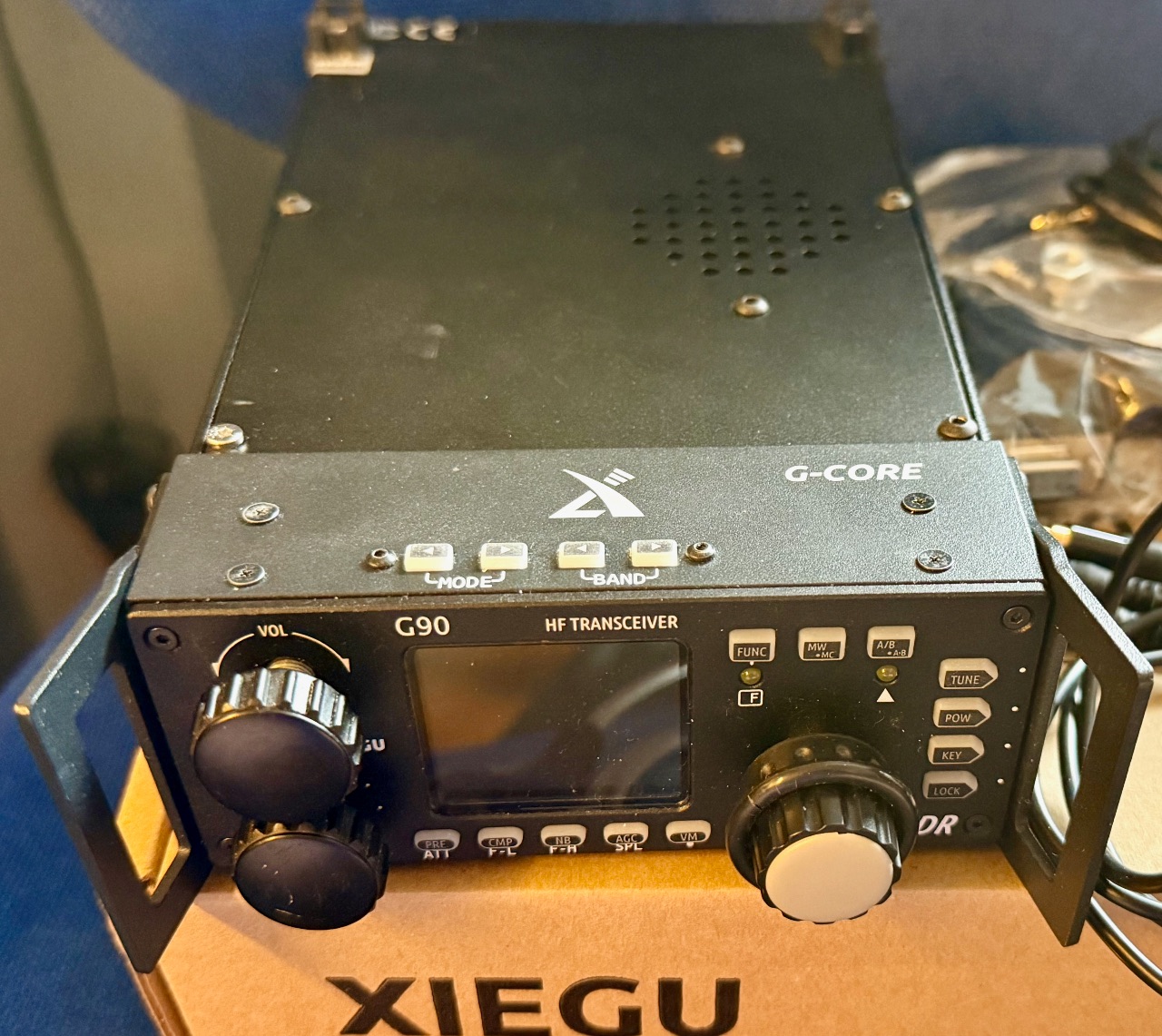

Xiegu G90 “QRP”

Beskrivelse

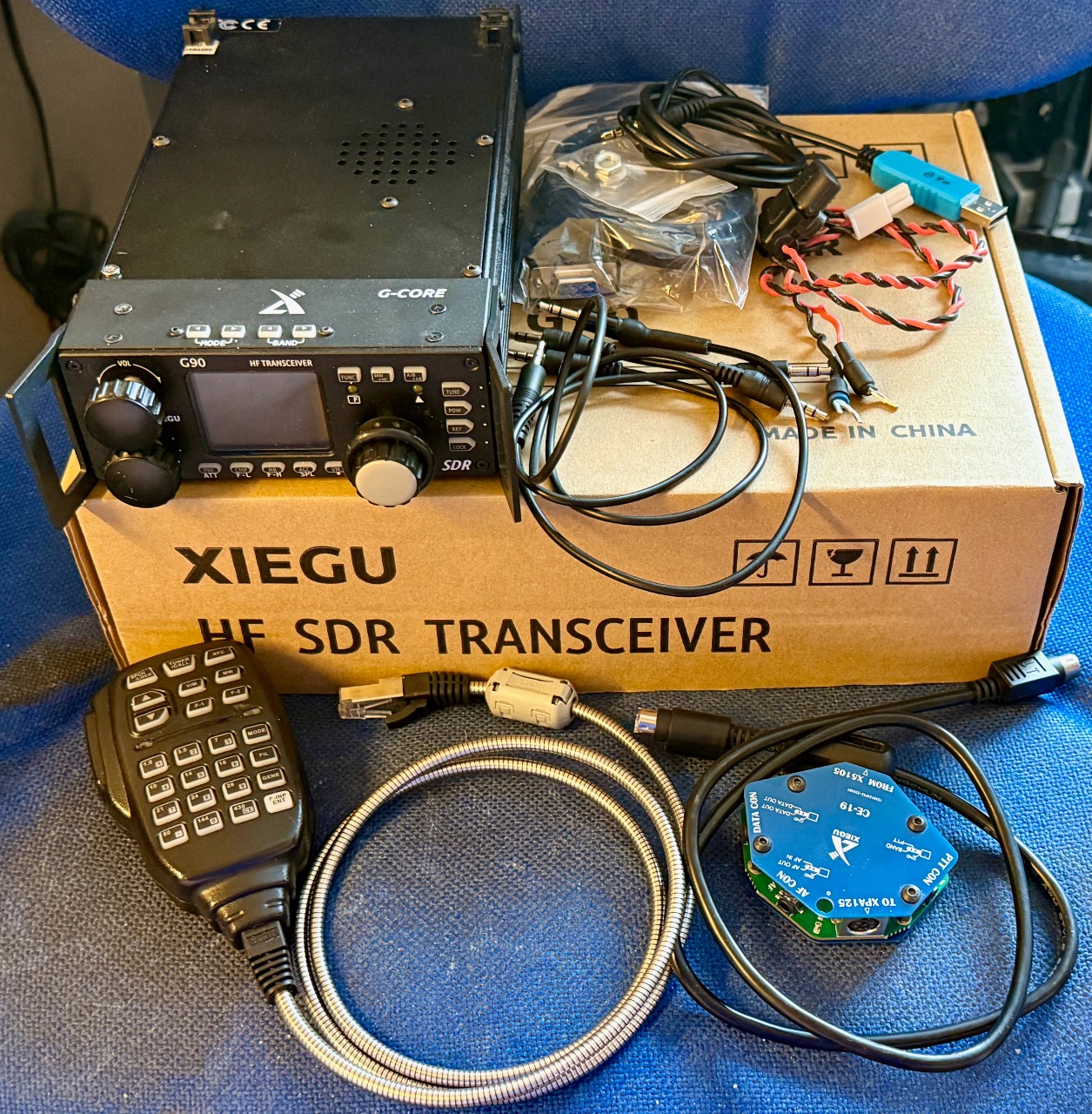

Xiegu G90 HF Radio med Automatisk antennetuner. 20W (Firmware 1.81) Der medfølger: Udvidelseskabel til den aftagelige front. Original kabel til programmering. Xiegu CE-19 datainterface med div kabler Xiegu G90 Type: Amateur HF transceiver Frequency range: TX: 10-160 m · RX: 0.5-30 MHz Tuning steps: Minimum 10 Hz Mode: AM / SSB / CW (FM with optional GSOC controller) Weight: 1.63 Kg (3.59 lb), without handles Other features: 24-bit SDR. 1.8" color TFT. Spectrum and waterfall display. Keyer. · · CI-V CAT control. I/Q output. Detachable display head. CW decoder. · · VOX. SWR plotter. Wide range ATU. Multi-function microphone. Receiver system: Down mix 24-bit SDR. Cirrus Logic CS4272 @ 48 KHz Sensitivity: AM (10 dB S/N) · · 0.5-2 MHz: 10 uV · · 2-30 MHz: 2 uV · · · FM (12 dB SINAD), with optional GSOC controller · · 1.8-2 MHz: 0.35 uV · · 2-30 MHz: 0.25 uV · · · SSB/CW (10 dB S/N) · · 1.8-2 MHz: 0.35 uV · · 2-30 MHz: 0.25 uV Selectivity: 50-5500 Hz adjustable Image rejection: 70 dB Manufactured: China, 2018-202x (Discontinued) Related documents: User manual v1.01 (13.9 MB, Eng/Ger) · · RF driver: RD06HHF · · RF finals: Two RD16HHF Kilde: RigPix — https://www.rigpix.com/xiegu/xiegu_g90.htm
