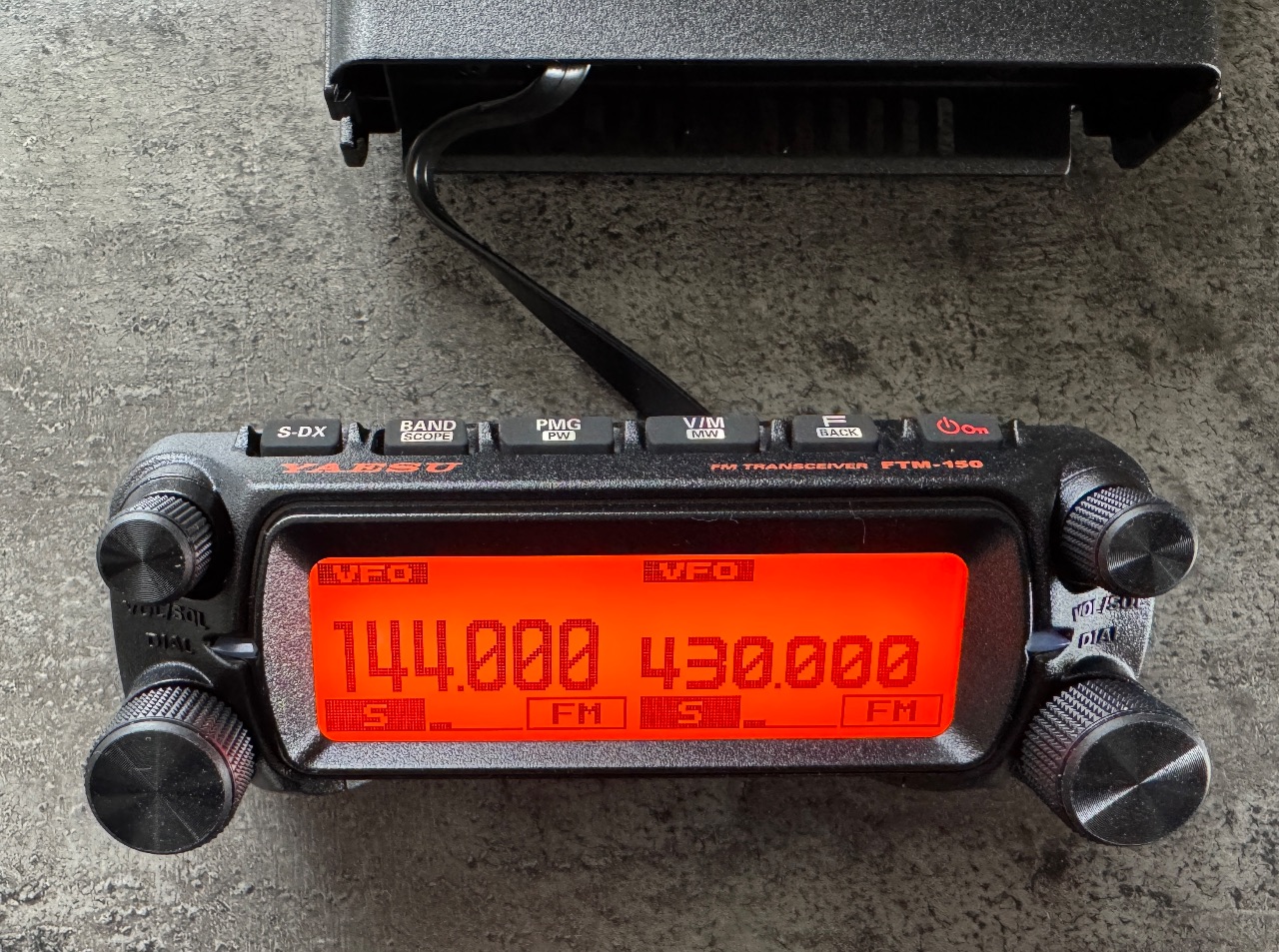

Yaesu FTM-150E ASP

Beskrivelse

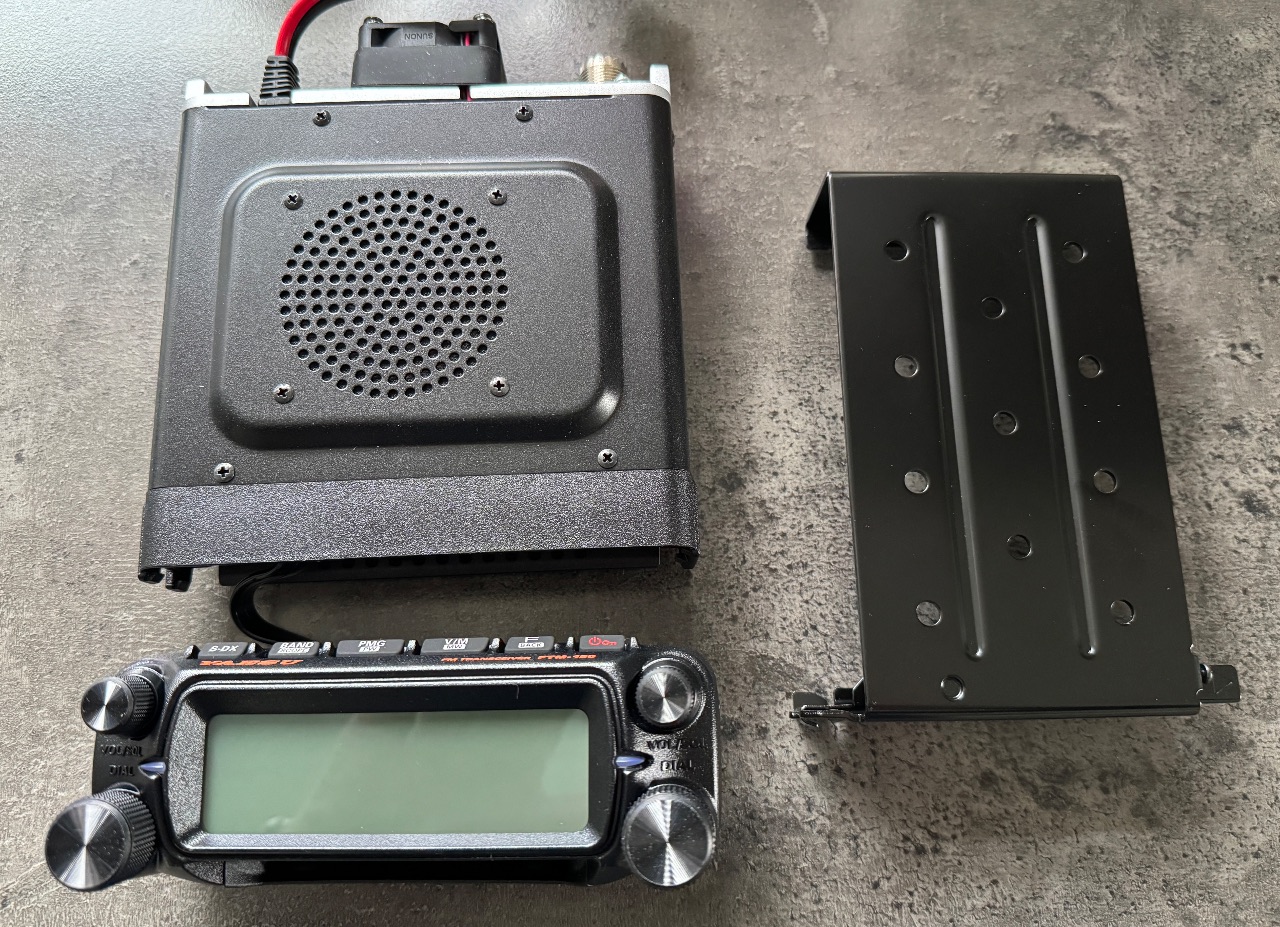

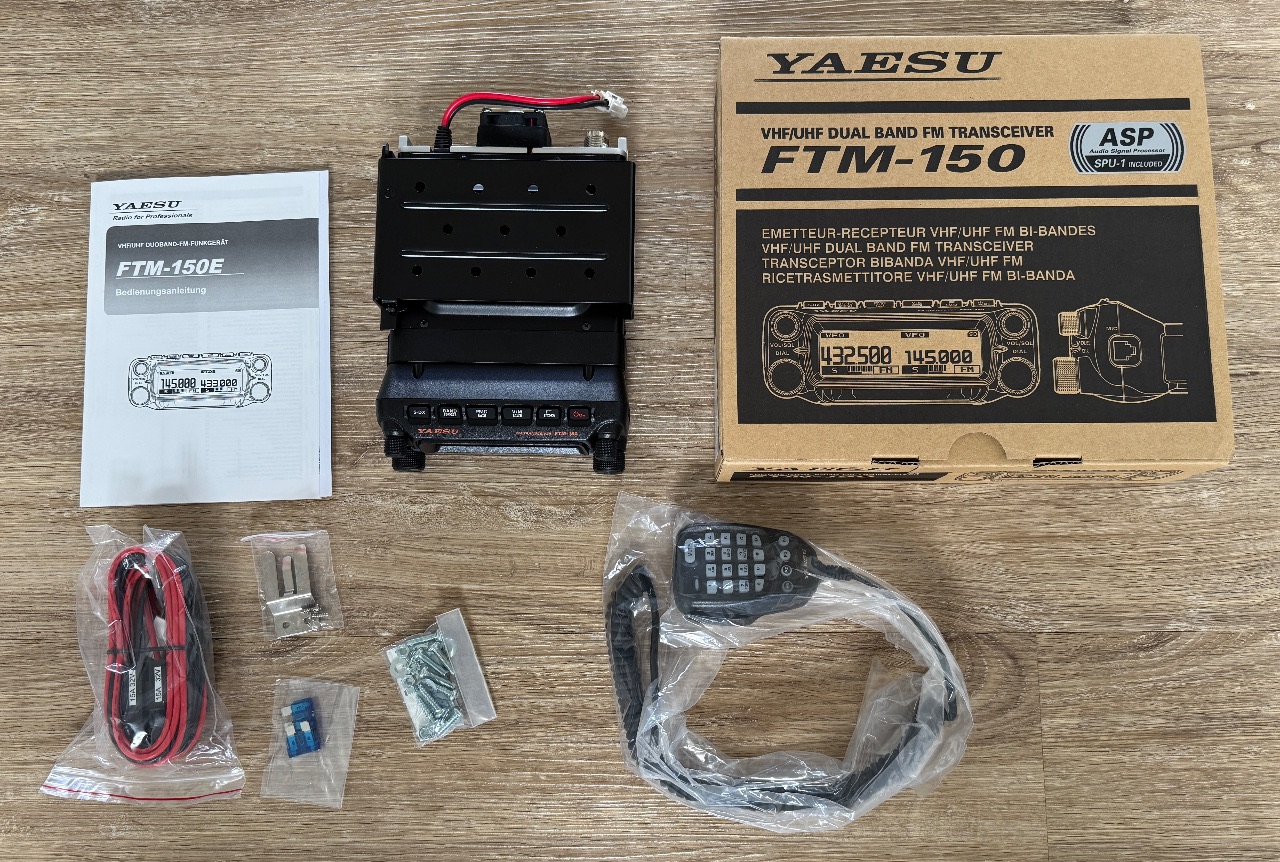

Som ny. Købt hos Wimo i december 2025, dvs. der er stadig garanti. Yaesu FTM-150E ASP Type: Amateur VHF/UHF transceiver Frequency range: Europe · · TX: 144-146 / 430-440 MHz · · RX: 108-550 MHz Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz Mode: TX: FM / NFM · RX: AM / FM / NFM Weight: 1.2 Kg (2.64 lb). Radio unit with controller and control cable Other features: CTCSS/PL and DCS with tone search. Super DX mode for enhanced weak · · signal reception. PMG (Primary Memory Group activity monitor. · · CFL (Custom Function List). EPCS (Enhanced Paging & Code Squelch). · · Dual watch. DTMF. Dimmer. 1750 Hz tone call. FACC cooling. VOX. · · True twin RX (V+V/U+U/V+U/U+V). 47 channel band scope. Weather alert. · · MAG (Memory Auto Grouping). Micro-SD slot. Data jack fo Receiver system: Double conversion superheterodyne · · 1st IF: 56.75 MHz (Main), 55.85 MHz (Sub) · · 2nd IF: 450 KHz Sensitivity: AM (10 dB S/N) · · 108-137 MHz: 0.8 uV · · 300-336 MHz: 0.8 uV · · · FM (12 dB SINAD) · · 137-150 MHz: 0.2 uV · · 150-174 MHz: 0.25 uV · · 174-222 MHz: 0.3 uV · · 222-300 MHz: 0.25 uV · · 336-420 MHz: 0.25 uV · · 420-550 MHz: 0.2 uV Selectivity: AM/FM: · · 12 KHz (-6 dB) · 30 KHz (-60 dB) Manufactured: 2024-202x Related documents: User manual (6.4 MB) · · Advanced manual (1.8 MB) Kilde: RigPix — https://www.rigpix.com/yaesu/ftm150easp.htm
