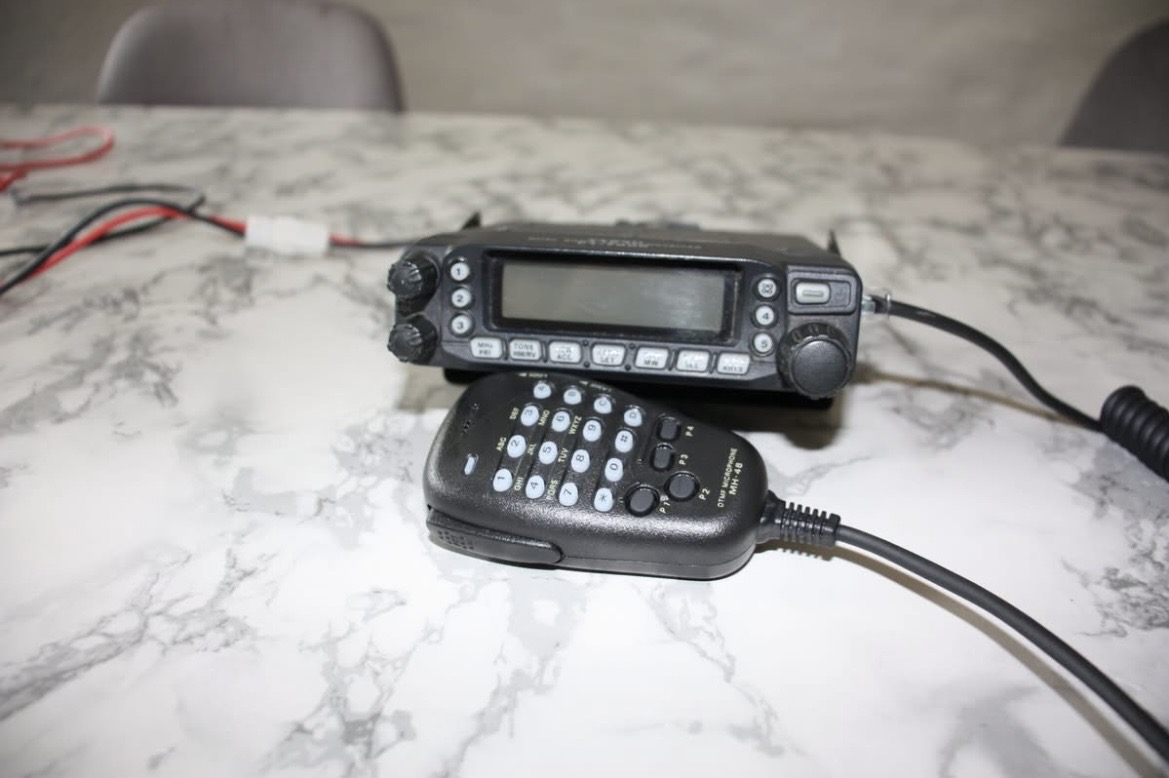

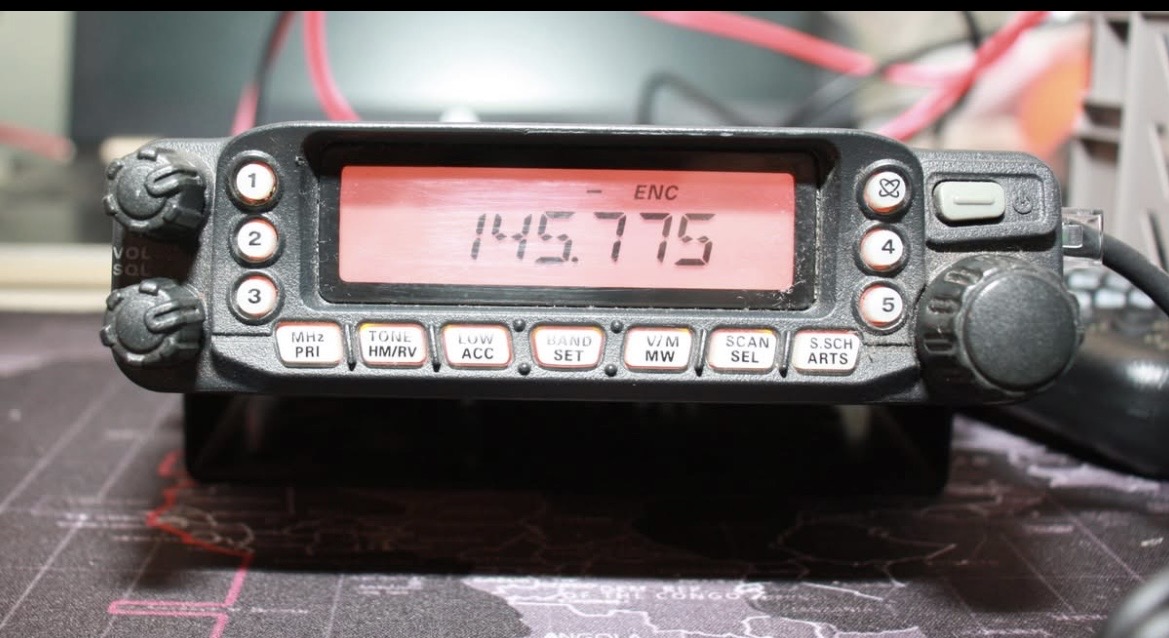

Yaesu FT 7800

Beskrivelse

Yaesu FT 7800 god Radio pris 1600 kr GENERAL Type: Amateur VHF/UHF transceiver Frequency range: Europe TX: 144-146 / 430-440 MHz RX: 108-1000 MHz USA TX: 144-148 / 430-450 MHz RX: 108-1000 MHz (Cellular blocked) Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz Frequency stability: ±5 ppm @ -10 to +60°C (14 to 140°F) Mode: TX: FM / NFM RX: AM / FM / NFM Channels / memory management: 1000 regular with alpha tags (6 characters) 5 home 5 hyper 10 NOAA weather channels 50 scan edge pairs (PMS) Priority function Non-volatile EEPROM storage Repeater shift / offset: ±0-99.95 MHz in 50 KHz steps Power supply: 13.8 VDC ±15% ("T" connector on pigtail) Current drain / power consumption: RX: 200-450 mA TX: Max 8.5 A Antenna impedance / connector: 50 ohm / N-jack Dimensions (W*H*D): 140*42*168 mm (5.51*1.65*6.61") Weight: 1 Kg (2.2 lb) Other features: CTCSS/PL and DCS with tone search. WIRES. ARS. ARTS. Dimmer. 1K2/9K6 packet jack. Data cloning. Detachable front panel. RECEIVER SECTION Receiver system: Double conversion superheterodyne 1st IF: 45.05 MHz 2nd IF: 450 KHz Sensitivity: AM (10 dB S/N) 108-137 MHz: 0.8 uV 300-336 MHz: 0.8 uV FM (12 dB SINAD) 137-150 MHz: 0.2 uV 150-174 MHz: 0.25 uV 174-222 MHz: 0.3 uV 222-300 MHz: 0.25 uV 336-420 MHz: 0.25 uV 420-520 MHz: 0.2 uV 800-900 MHz: 0.4 uV 900-1000 MHz: 0.8 uV Selectivity: 12 KHz (-6 dB) 30 KHz (-60 dB) Image rejection: AF output power / speaker: 2 W at 10% distortion / 8 ohm External speaker connector: 3.5 mm, 4-16 ohm TRANSMITTER SECTION RF output power: HighLow 3Low 2Low 1 2 m: 50 W 20 W 10 W 5 W 70 cm: 40 W 20 W 10 W 5 W Modulation system: Variable reactance Max FM deviation (Factory set): FM: ±5 KHz NFM: ±2.5 KHz Spurious emissions: Better than -60 dB Microphone impedance / connector: 2 Kohm / 6-pin (Modular) Microphone input level: ? mV MISCELLANEOUS Manufactured: Japan, 2003-2009 (Discontinued) Additional info: Related documents: User manual (2.9 MB) Modifications and fixes: Reviews: Options / Accessories: CT-39 FP-1023 FP-1030A MEK-2 MH-42B6JS MH-48A6J MLS-100 MMB-36 YSK-7800 Packet interface cable AC power supply. 13.8 VDC, 23 A (USA only) AC power supply. 13.8 VDC, 25 A Microphone extension kit Hand microphone Hand microphone with DTMF keypad External speaker Mobile mouonting bracket Separation ki
